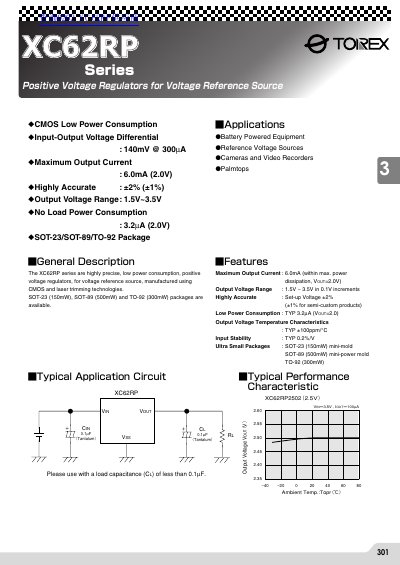

Torex XC62RP Series Voltage Regulator Datasheet
The XC62RP series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies. They are designed to be used as voltage reference sources and feature a wide output voltage range from 1.5V to 3.5V in 0.1V increments.
These regulators offer high accuracy with a set-up voltage tolerance of ±2% (±1% for semi-custom products) and low power consumption, typically drawing only 3.2 µA at VOUT=2.0V. The series is available in three ultra-small packages: SOT-23 (150mW), mini-mold SOT-89 (500mW), and TO-92 (300mW).
Torex XC62RP specifications
| Output Voltage Range | 1.5V ~ 3.5V in 0.1V increments |
|---|---|
| Maximum Output Current | 6.0mA (at VOUT=2.0V) |
| Set-up Voltage Accuracy | ±2% (±1% for semi-custom) |
| No Load Power Consumption | 3.2 µA (at VOUT=2.0V) |
| Output Voltage Temperature Characteristics | ±100ppm/°C |
| Input Stability | 0.2%/V |
All Torex XC62RP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available package types for the XC62RP series?
The series is available in SOT-23, mini-mold SOT-89, and TO-92 packages.
What is the typical supply current of the XC62RP?
The typical no-load power consumption is 3.2 µA when VOUT is 2.0V.
What is the maximum output current of the XC62RP series?
The maximum output current is 6.0 mA (within max. power dissipation, VOUT=2.0 V).
From: Torex XC62RP Series Positive Voltage Regulator Datasheet
Which package options are offered for the XC62RP regulators?
They are available in SOT‑23, SOT‑89, and TO‑92 packages.
From: Torex XC62RP Series Positive Voltage Regulator Datasheet
