Start here

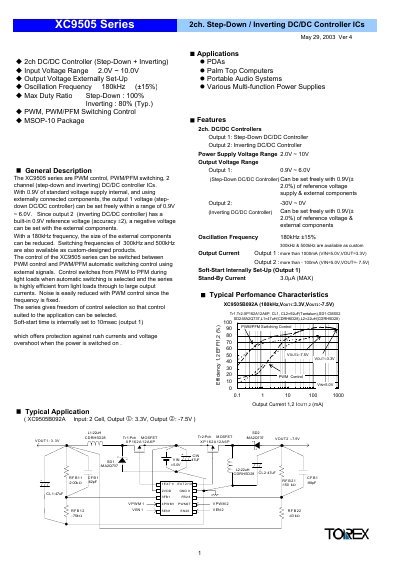

Torex XC9505 Series 2ch DC/DC Controller Datasheet
The document describes the XC9505 series as 2-channel DC/DC controllers featuring one step-down output (Output 1) and one inverting output (Output 2). The device supports a power supply voltage range of 2.0V to 10V and offers an oscillation frequency of typically 180kHz, with custom options for 300kHz and 500kHz.
Key features include PWM or automatic PWM/PFM switching control, soft-start functionality internally set to 10msec for Output 1, and a maximum duty ratio of 100% for step-down and 80% for inverting modes. The IC is available in an MSOP-10 package.
Torex XC9505 Series specifications
| Power Supply Voltage Range | 2.0V ~ 10.0 V |
|---|---|
| Output 1 Voltage Range (Step-Down) | 0.9V ~ 6.0V |
| Output 2 Voltage Range (Inverting) | -30V ~ 0V |
| Oscillation Frequency | 180kHz (±15%) |
| Maximum Duty Ratio Step-Down | 100 % |
| Maximum Duty Ratio Inverting | 80% (Typ.) |
| Package Type | MSOP-10 |
| Stand-By Current | 3.0µA (MAX) |
All Torex XC9505 Series documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the standard oscillation frequency of the XC9505?
The typical oscillation frequency is 180kHz, with a tolerance of ±15%.
Can the control mode be switched between PWM and PFM?
Yes, the control can be switched between PWM control and PWM/PFM automatic switching using external signals.
What is the soft‑start time for output 1?
Soft‑start time is internally set to 10 ms for output 1.
From: Torex XC9505 Series 2‑Channel Step‑Down/Inverting DC‑DC Controller IC Datasheet
Which package types are offered for the XC9505?
The IC is available in MSOP‑10 and USP‑10 packages.
From: Torex XC9505 Series 2‑Channel Step‑Down/Inverting DC‑DC Controller IC Datasheet
