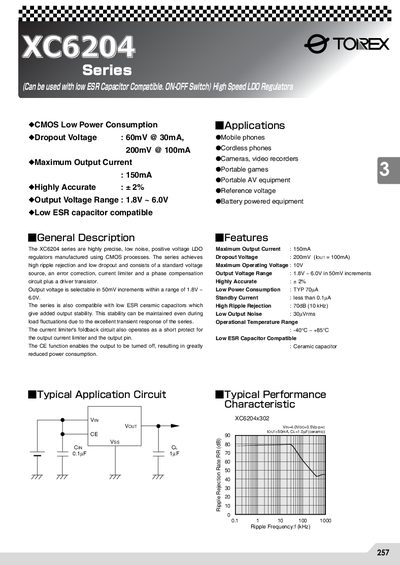

Torex XC6204 LDO Regulator Datasheet
The XC6204 series from Torex are precision, low‑noise LDO regulators with selectable output voltages from 1.8 V to 6.0 V in 50 mV steps. They feature high ripple rejection, low dropout (as low as 60 mV at 30 mA), and are compatible with low‑ESR ceramic capacitors for stable operation under load transients.
The device includes an integrated current limiter with fold‑back protection, a CE ON/OFF pin, and a CE pin logic that can be configured as active‑high or active‑low with optional pull‑up/pull‑down resistors. Typical applications include mobile phones, cameras, portable AV equipment, and battery‑powered devices.
Torex XC6204 specifications
| Output Voltage Range | 1.8 V ~ 6.0 V (50 mV steps) |
|---|---|
| Dropout Voltage (100 mA) | 200 mV |
| Maximum Output Current | 150 mA |
| Low Power Consumption (typical) | 70 nA |
| Standby Current | < 0.14 µA |
| High Ripple Rejection | 70 dB @ 10 kHz |
| Low Output Noise | 80 nV rms |
| Operational Temperature Range | -40 °C ~ +85 °C |
| Maximum Input Voltage | 12 V |
All Torex XC6204 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical standby current of the XC6204 series?
The standby current is less than 0.14 µA.
What is the maximum output current the regulator can supply?
The regulator can supply up to 150 mA of output current.
What is the maximum output current of the XC6204/XC6205 series?
The regulators can deliver up to 150 mA of output current.
What is the dropout voltage at 100 mA load?
The dropout voltage is 200 mV when the load current is 100 mA.
