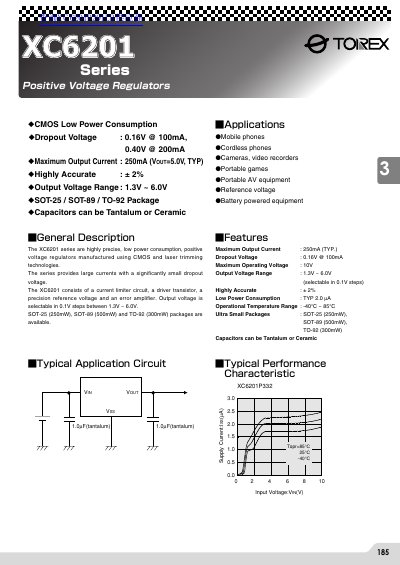

The XC6201 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6201 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error amplifier. Output voltage is selectable in 0.1V steps between 1.3V ~ 6.0V. SOT-25 (250mW), SOT-89 (500mW) and TO-92 (300mW) packages are available.
The XC6201 series are highly precise, low‑power consumption positive voltage regulators manufactured using CMOS and laser‑trimming technologies. They provide selectable output voltages in 0.1 V steps between 1.3 V and 6.0 V and are offered in ultra‑small SOT‑25, SOT‑89 and TO‑92 packages.
Key features include a typical dropout voltage of 0.16 V at 100 mA, maximum output currents of 250 mA (SOT‑25) up to 500 mA (SOT‑89), operation from –40 °C to +85 °C, and support for tantalum or ceramic output capacitors.
| Output Voltage Range | 1.3 V – 6.0 V (selectable in 0.1 V steps) |
|---|---|
| Dropout Voltage | 0.16 V @ 100 mA, 0.40 V @ 200 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Package Types | SOT‑25, SOT‑89, TO‑92 |
| Input Voltage (Absolute Max) | 12 V |
| Capacitor Types | Tantalum or Ceramic |
The typical dropout voltage is 0.16 V at a load of 100 mA (0.40 V at 200 mA).
The series is offered in three ultra‑small packages: SOT‑25, SOT‑89 and TO‑92.
Output voltage can be set from 1.3 V to 6.0 V in 0.1 V steps.
The device operates from –40 °C up to +85 °C.
