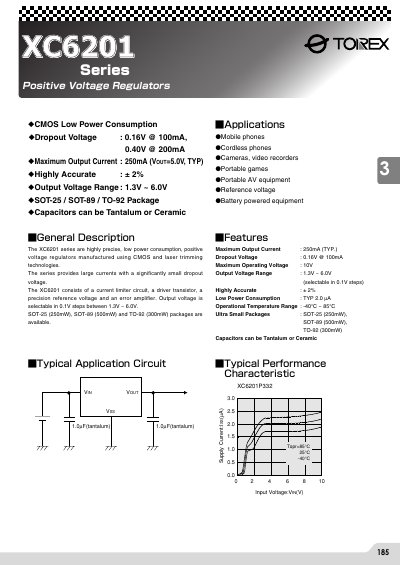

The XC6201 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6201 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error amplifier. Output voltage is selectable in 0.1V steps between 1.3V ~ 6.0V. SOT-25 (250mW), SOT-89 (500mW) and TO-92 (300mW) packages are available.
The XC6201 series are highly precise, low‑power consumption, positive voltage regulators built with CMOS and laser‑trimming technology. They provide selectable output voltages in 0.1 V steps between 1.3 V and 6.0 V and deliver up to 250 mA of current while maintaining a very low dropout voltage.
Available in SOT‑25, SOT‑89 and TO‑92 packages, the regulators are suited for mobile phones, cameras, portable gaming devices, reference voltage applications and other battery‑powered equipment. The datasheet details electrical characteristics, pin assignments, absolute maximum ratings and performance graphs such as ripple rejection and output noise.
| Dropout Voltage | 0.16 V @ 100 mA, 0.40 V @ 200 mA |
|---|---|
| Maximum Output Current | 250 mA (typical) |
| Output Voltage Range | 1.3 V – 6.0 V (selectable in 0.1 V steps) |
| Operating Temperature Range | -40 °C to +85 °C |
| Package Types | SOT‑25 (250 mW), SOT‑89 (500 mW), TO‑92 (300 mW) |
| Maximum Input Voltage | 12 V |
The dropout voltage is 0.16 V at 100 mA.
The regulator can supply up to 250 mA (typical).
The XC6201 is offered in SOT‑25, SOT‑89 and TO‑92 packages.
It operates from –40 °C up to +85 °C.
