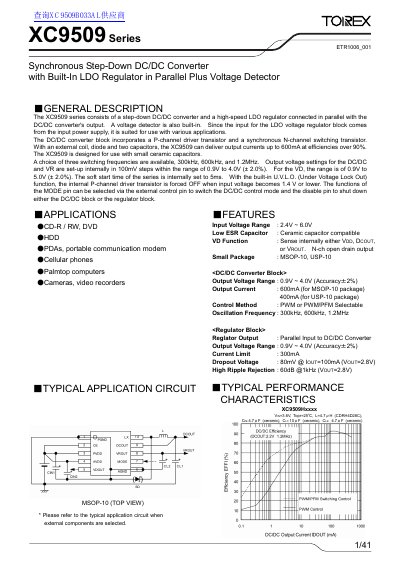

Torex XC9509 Series Synchronous Step-Down DC/DC Converter Datasheet
The XC9509 series consists of a step-down DC/DC converter and a high-speed LDO regulator connected in parallel with the output. It also features a built-in voltage detector (VD). The design incorporates a P-channel driver transistor and a synchronous N-channel switching transistor, allowing for efficient power delivery up to 600mA depending on the package.
Read onlineTorex XC9509SERIES specifications
| Input Voltage Range | 2.4V ~ 6.0V |
|---|---|
| Output Current (MSOP-10) | 600mA |
| Switching Frequencies | 300kHz, 600kHz, 1.2MHz |
| Operating Temperature Range | -40 ~ +85 C |
Source: Torex XC9509 Series Synchronous Step-Down DC/DC Converter Datasheet
All Torex XC9509SERIES documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current for the MSOP-10 package?
The XC9509 can deliver output currents up to 600mA when using the MSOP-10 package.
From: Torex XC9509 Series Synchronous Step-Down DC/DC Converter Datasheet
Does this series support ceramic capacitors?
Yes, the XC9509 is designed for use with small ceramic capacitors.
From: Torex XC9509 Series Synchronous Step-Down DC/DC Converter Datasheet
What is the input voltage range of the XC9509 series?
The device operates from 2.4 V to 6.0 V input.
From: Torex XC9509 Series Synchronous Step-Down DC/DC Converter Datasheet
How much output current can the MSOP‑10 package deliver?
It can deliver up to 600 mA of output current.
From: Torex XC9509 Series Synchronous Step-Down DC/DC Converter Datasheet
