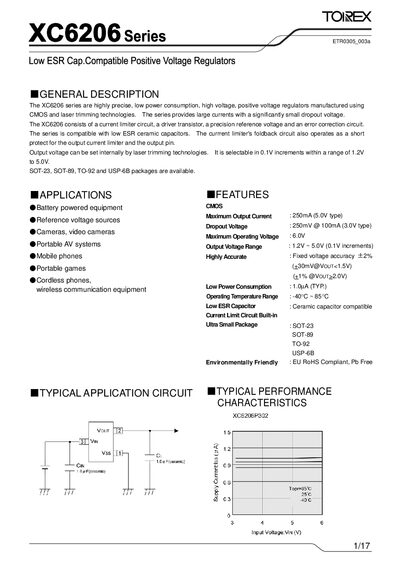

Torex XC6206 Voltage Regulator Datasheet
The XC6206 series are highly precise, low‑power consumption, high‑voltage positive voltage regulators manufactured with CMOS and laser‑trimming technology. They offer selectable output voltages from 1.2 V to 5.0 V in 0.1 V steps and are available in SOT‑23, SOT‑89, TO‑92, and USP‑6B packages.
Key features include a maximum output current of up to 500 mA, low dropout voltage (250 mV at 100 mA for the 3.0 V type), wide input voltage range (1.8 V–6.0 V), and operation over –40 °C to +85 °C. The datasheet contains pin assignments, electrical characteristics, typical application circuits, and detailed performance graphs.
Torex XC6206 specifications
| Dropout Voltage (3.0 V type, 100 mA) | 250 mV |
|---|---|
| Output Voltage Range | 1.2 V – 5.0 V (0.1 V steps) |
| Operating Temperature Range | -40 °C – +85 °C |
| Power Dissipation (TO‑92) | 300 mW |
| Input Voltage Range | 1.8 V – 6.0 V |
| Voltage Accuracy | ±2 % (+30 mV) for VOUT < 1.5 V |
All Torex XC6206 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the dropout voltage at 100 mA for the 3.0 V type?
The dropout voltage is 250 mV at 100 mA for the 3.0 V type.
Which package types are available for the XC6206 series?
The series is offered in SOT‑23, SOT‑89, TO‑92, and USP‑6B packages.
What is the dropout voltage at 100 mA for the 3.0 V type?
The dropout voltage is 250 mV at 100 mA for the 3.0 V type.
Which package types are offered for the XC6206 series?
The series is offered in SOT‑23, SOT‑89, TO‑92 and USP‑6B packages.
