Key facts
- Brand
- Torex
- Model
- USPN-4B02
- Documents
- 3
- Languages
- EN
- Last added
- 2012-03-19
Start here

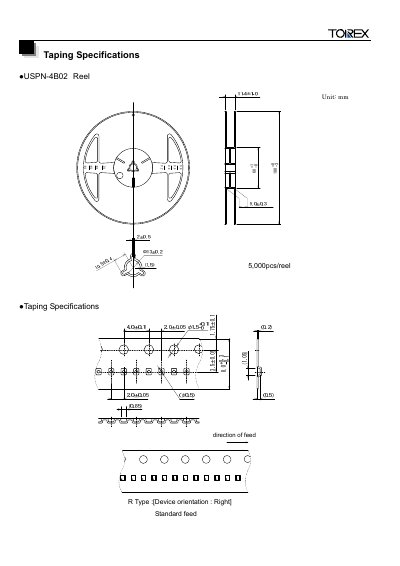

TOREX USPN-4B02 Manual(2)
User Manual
This document provides the taping specifications for USPN-4B02 Reel, including device orientation, feed direction, and dimensions.
Read onlineTorex USPN-4B02 specifications
| Board dimensions | 40 × 40 mm (1600 mm²) |
|---|---|
| Copper coverage | 50 % front, 50 % back; each block 12.5 % of total |
| Material | Glass Epoxy (FR‑4) |
| Board thickness | 1.6 mm |
| Through‑hole size | 4 × 0.8 mm |
Source: Torex USPN-4B02 Datasheet
All Torex USPN-4B02 documents by type
User Manual 3
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What measurement conditions were used for the power dissipation data?
The data were measured with the device mounted on a 40 × 40 mm FR‑4 board, natural convection ambient, lead‑free soldering, 1.6 mm board thickness, and copper covering 50 % of each side.
How many terminals does the USPN-4 package have?
The USPN-4 package has four terminals.
