Torex models by category
Featured Torex manuals
Torex XC6206 Voltage Regulator Datasheet
The XC6206 series are highly precise, low‑power consumption, high‑voltage positive voltage regulators manufactured with CMOS and laser‑trimming technology. They offer selectable output voltages from 1.2 V to 5.0 V in 0.1 V steps and are available in SOT‑23, SOT‑89, TO‑92, and USP‑6B packages.
Key features include a maximum output current of up to 500 mA, low dropout voltage (250 mV at 100 mA for the 3.0 V type), wide input voltage range (1.8 V–6.0 V), and operation over –40 °C to +85 °C. The datasheet contains pin assignments, electrical characteristics, typical application circuits, and detailed performance graphs.
Covers: Applications · Typical Application Circuit · Features · General Description · Pin Configuration · Electrical Characteristics
TOREX Bulk Solids Discharging and Feeding Equipment Product Range
TOREX S.p.A., founded in 1987, offers a wide range of equipment for handling and processing powders and granular materials. The catalogue covers carbon and stainless‑steel drop‑through and blow‑through rotary valves, pinch valves, double‑dump and diverter valves, as well as loading bellows for tankers, trucks, barges and ships.
The brochure details product families such as the BELLOJET loading bellows, MINIFILL units, various rotary and pinch valves, level and pressure monitoring devices, and the KCS silo safety system. Technical data like flow capacities, stroke lengths and ATEX certifications are provided for each model.
Covers: Bulk Solids Discharging · Bulk Solids Feeding · Bulk Solids Metering · Loading Bellows · Rotary Valves · Pinch Valves

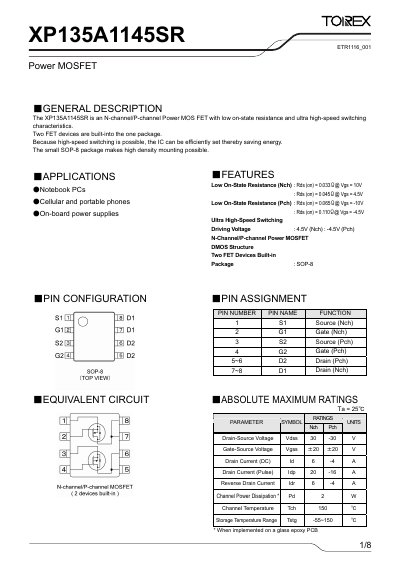

Torex XP135A1145SR Power MOSFET Datasheet
The XP135A1145SR is a dual N‑channel/P‑channel power MOSFET featuring low on‑state resistance and ultra‑high‑speed switching. It integrates two FET devices in a compact SOP‑8 package, enabling high‑density mounting.
Key specifications include a drain‑source voltage rating of ±30 V, drain currents of 6 A (N‑channel) and –4 A (P‑channel), typical on‑state resistances of 0.033 Ω (N‑channel) and 0.065 Ω (P‑channel), input capacitance around 620 pF, and turn‑on/off delays of 15 ns/30 ns. The device is targeted for notebook PCs, cellular phones, and on‑board power supplies. This manual is written in Chinese.
Covers: General Description · Applications · Features · Pin Configuration · Absolute Maximum Ratings · Electrical Characteristics

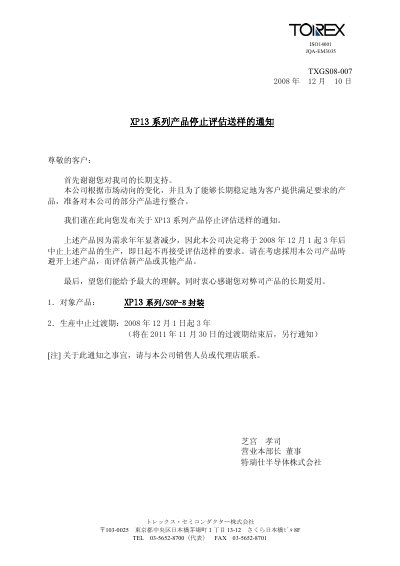

Torex XP13 Series SOP-8 Discontinuation Notice
Torex Semiconductor issues this notice to inform customers that the XP13 series in SOP‑8 package will cease production and will no longer accept evaluation samples. The decision follows a significant decline in market demand and aims to streamline the product portfolio.
The discontinuation period runs from December 1 2008 for three years, ending on November 30 2011. Customers are advised to avoid the listed part numbers and consider alternative products or newer offerings. For further assistance, contact Torex sales representatives or authorized distributors. This manual is written in Japanese.
Covers: Discontinuation Announcement · Affected Products · Production Stop Schedule · Customer Guidance · Contact Information
Latest Torex manuals
Torex XC6206 Voltage Regulator Datasheet
Datasheet 17 pages · 997 KB · ENThe Torex XC6206 datasheet provides specifications, pin configurations, performance curves, and packaging details for the low‑power positive voltage regulator.
TOREX Bulk Solids Discharging and Feeding Equipment Product Range
Product Leaflet 15 pages · 2.3 MB · ENThe TOREX brochure presents its bulk solids handling equipment, including loading bellows, rotary valves, metering devices and safety systems.
TOREX ANSY 9300 technology data
This is a maintenance manual for the ANSY 9300 industrial regulator, which introduces its installation, operation and maintenance methods.
TOREX XC61C Series
The XC61C series are highly precise, low power consumption voltage detectors, manufactured using CMOS and laser trimming technologies. Detect voltage is extremely accurate with minimal temperature drift. Both CMOS and N-channel open drain output configurations are available.
TOREX XC9106 07 Series handbook
The XC9106 / 07 series are step-up DC/DC controller ICs with an externally applied reference voltage (Vref). Output voltage will be set with external resistors (RFB1 and 2) and Vref value. The series make it easy to control output voltage externally and are suited to software-controlled DC/DC converters.
TOREX XC62RP Series handbook
The XC62RP series are highly precise, low power consumption, positive voltage regulators, for voltage reference source, manufactured using CMOS and laser trimming technologies. SOT-23 (150mW), SOT-89 (500mW) and TO-92 (300mW) packages are available.
TOREX XC62G Series handbook
The XC62G series is a highly precise, low power consumption positive voltage regulator manufactured using CMOS and laser trimming technologies. It achieves high output currents with low input-output voltage differentials. The series includes a high precision voltage reference, an error correction circuit, and an output driver with current limitation. It exhibits good transient responses and stable output even during load changes. It also has high ripple rejection ratios and can be used with low power supply noise. The CE input allows the output to be turned off, reducing power consumption. It is available in SOT-25 (150mW) and SOT-89-5 (500mW) packages.
TOREX XC6219 Series handbook
TOREX XC6101~XC6107 Series Data Sheet
The XC6101~XC6107, XC6111~XC6117 series are groups of high-precision, low current consumption voltage detectors with manual reset input function and watchdog functions incorporating CMOS process technology.
TOREX XC9509Series Data Sheet
The XC9509 series consists of a step-down DC/DC converter and a high-speed LDO regulator connected in parallel with the DC/DC converter's output. A voltage detector is also built-in.
TOREX XC62FP Series DATA SHEET
The XC62FP series is a group of high-precision, low-power three-pin regulators that provide a high current output even when the input/output voltage differential is small.
TOREX XC6101~XC6107 XC6111~XC6117 Series
XC6101~XC6107, XC6111~XC6117 series are groups of high-precision, low current consumption voltage detectors with manual reset input function and watchdog functions incorporating CMOS process technology.
TOREX XC9505 Series Data Sheet
The XC9505 series are PWM control, PWM/PFM switching, 2 channel (step-down and inverting) DC/DC controller ICs.
TOREX XC6203 series (1)
The XC6203E series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6203E consists of a driver transistor, a precision reference voltage and an error amplifier. Output voltage is selectable in 0.1V steps between a voltage of 1.8V and 6.0V. SOT-89 (500mW), SOT-223 (1200mW) and TO-92 (300mW) package.
TOREX XC62FP DATA SHEET
The XC62FP series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The XC62FP consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT-23 (150mW), SOT-89 (500mW) and TO-92 (300mW) packages are available. Maximum Output Current : 250mA (within max. power dissipation, VOUT = 5.0V) Output Voltage Range : 2.0V ~ 6.0V in 0.1V increments (1.5V ~ 1.9V for custom products) Highly Accurate: Output voltage ±2% (±1% for semi-custom products) Low Power Consumption : Typ. 2.0µA @ VOUT=5.0V Output Voltage Temperature Characteristics : Typ. ±100ppm/°C Input Stability : Typ. 0.2%/V Small Input-Output Differential : IOUT = 100mA @ VOUT = 5.0V with a 0.12V differential. Ultra Small Packages : SOT-23 (150mW) mini-mold, SOT-89 (500mW) mini-power mold TO-92 (300mW) GBattery Powered Equipment GPalmtops GPortable Cameras and Video Recorders GReference Voltage Sources NCMOS Low Power Consumption NSmall Input-Output Voltage Differential : 0.12V @ 100mA, 0.38V @ 200mA NMaximum Output Current : 250mA (VOUT=5.0V) NOutput Voltage Range : 2.0V~6.0V NHighly Accurate : ±2% (±1%)
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in Torex manuals
What is the dropout voltage at 100 mA for the 3.0 V type?
The dropout voltage is 250 mV at 100 mA for the 3.0 V type.
Which package types are available for the XC6206 series?
The series is offered in SOT‑23, SOT‑89, TO‑92, and USP‑6B packages.
What flow capacity does the BELLOJET ZA–ZB loading bellows support?
The BELLOJET ZA–ZB loading bellows can handle up to 250 m³/h (150 cfm).
From: TOREX Bulk Solids Discharging and Feeding Equipment Product Range
Which ATEX zones are the loading bellows certified for?
They are certified for ATEX zones 20/22.
From: TOREX Bulk Solids Discharging and Feeding Equipment Product Range
What is the maximum drain‑source voltage for the N‑channel device?
The N‑channel can handle up to 30 V drain‑source voltage.
What is the typical on‑state resistance of the N‑channel at Vgs = 10 V?
It is 0.033 Ω.
