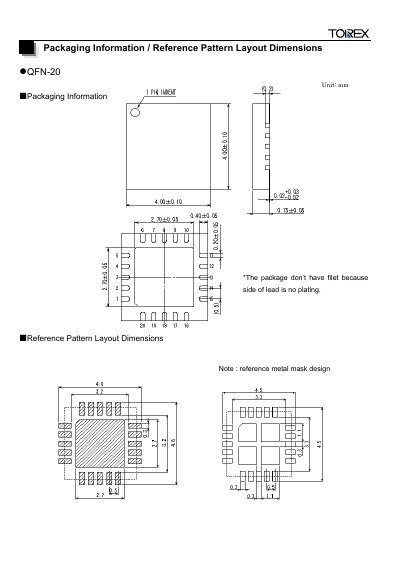

This document is about QFN-20 packaging information and reference pattern layout dimensions.
This document supplies packaging information for the Torex QFN-20 chip package, including reference pattern layout dimensions measured in millimetres. It lists the key geometric parameters needed for PCB design and mask creation.
The package does not have a chamfer because the lead side is not plated, and a reference metal mask design is included for manufacturing guidance. This manual is written in Chinese.
| Units | mm |
|---|---|
| Chamfer | None |
No, the package does not have a filet (chamfer).
All dimensions are expressed in millimetres.
