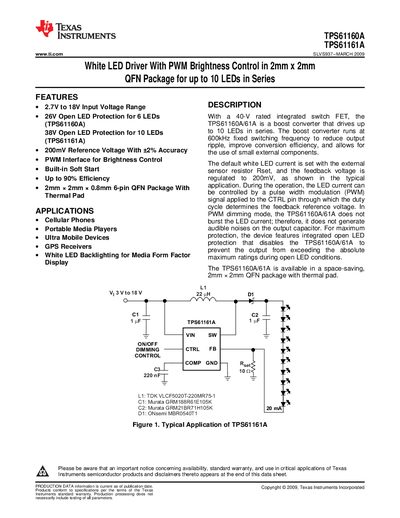

The TPS61160A/61A is a white LED driver from TI that uses a 2mm x 2mm QFN package and can drive up to 10 LEDs in series. The device has a 2.7V to 18V input voltage range, 26V open LED protection (TPS61160A), 38V open LED protection (TPS61161A), 200mV reference voltage, ±2% accuracy, PWM interface, programmable soft start, up to 90% efficiency, and a 2mm x 2mm x 0.8mm 6-pin QFN package.
The TPS61160A/61A are 2.7 V‑to‑18 V input boost converters designed for white LED backlighting and portable devices. They integrate a 40 V switch FET, PWM dimming interface, soft‑start, and open‑LED protection, delivering up to 90 % efficiency in a 2 mm × 2 mm QFN package.
Typical applications include cellular phones, media players, GPS receivers, and white LED backlighting for displays. The devices support up to 10 LEDs in series (TPS61161A) or 6 LEDs (TPS61160A) and provide a 200 mV reference voltage for current regulation.
| Input voltage range | 2.7 V to 18 V |
|---|---|
| Open LED protection (TPS61160A) | 26 V |
| Open LED protection (TPS61161A) | 38 V |
| Efficiency | up to 90 % |
| Switching frequency | 600 kHz (fixed) |
| Reference voltage | 200 mV (±42 % accuracy) |
| PWM dimming frequency range | 5 kHz to 100 kHz |
| Thermal shutdown threshold | 160 °C |
The device operates with an input voltage from 2.7 V up to 18 V.
The TPS61160A can drive up to 6 LEDs, while the TPS61161A can drive up to 10 LEDs in series.
LED current is set by an external sense resistor (Rset) connected to the FB pin.
PWM dimming can be performed between 5 kHz and 100 kHz.
