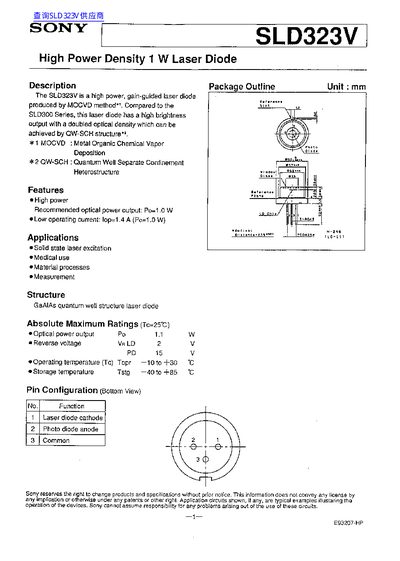

The Sony SLD323V is a high‑power, gain‑guided laser diode produced by MOCVD method. It delivers up to 1 W optical output with a low operating current and is suitable for solid‑state laser excitation, medical use, and measurement applications.
The document lists detailed electrical and optical parameters, absolute maximum ratings, pin configuration, and handling precautions such as mandatory eye protection and safety goggles. Graphs illustrate power‑versus‑current, temperature dependence, far‑field patterns, and wavelength spectra.
| Recommended optical power output | Po = 1.0 W |
|---|---|
| Low operating current | Iop = 1.4 A (Po=1.0 W) |
| Threshold current (Ith) | 0.3 – 0.5 A |
| Operating voltage (Vop) | 2.1 – 3.0 V |
| Wavelength range | 790 – 840 nm |
| Radiation angle (perpendicular) | 20 – 40° |
| Operating temperature range | -10 °C to +30 °C |
| Storage temperature range | -40 °C to +85 °C |
The recommended optical power output is 1.0 W.
The threshold current (Ith) ranges from 0.3 A to 0.5 A.
The device operates between 790 nm and 840 nm.
