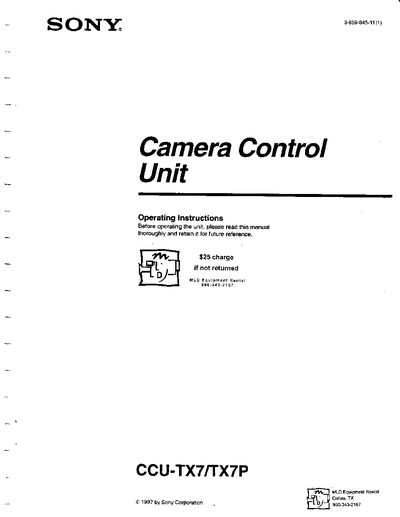

Sony CCU‑TX7/TX7P Camera Control Unit User Manual
The CCU‑TX7/TX7P is a camera control unit that connects to Sony DXC‑637 and DXC‑D30 series color video cameras. It supports wide‑band component video, audio over triaxial cable, intercom, tally signals and optional remote control panels. The unit can be rack‑mounted and linked in parallel for multi‑camera setups.
The manual covers safety warnings (no user‑serviceable parts, risk of electric shock), installation steps for the optional camera operation unit, front‑panel controls, connector descriptions, and detailed specifications such as power requirements, operating temperature, dimensions, and cable limits.
SONY CCU-TX7 specifications
| Power requirements (CCU‑TX7) | 120 VAC, 50/60 Hz |
|---|---|
| Power consumption | 95 W |
| Maximum cable length | 1500 m (14.5 mm diameter) |
| Operating temperature | 5 °C to 40 °C (41 °F to 104 °F) |
| Mass | 8.45 kg (18 lb 10 oz) |
| Dimensions (W×H×D) | 200 mm × 164 mm × 370 mm |
All SONY CCU-TX7 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum cable length supported by the CCU‑TX7/TX7P?
The unit supports up to 1500 m of triaxial cable when the cable diameter is 14.5 mm.
