Key facts
- Brand
- SONY
- Model
- CCD-TRV16
- Category
- Camcorders
- Industry
- Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-08
Start here

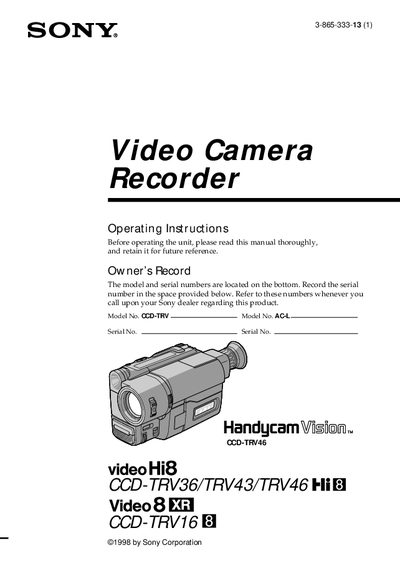

Sony CCD-TRV36/43/46/16 Camcorder User Manual
This manual covers the Sony CCD-TRV36, CCD-TRV43, CCD-TRV46, and CCD-TRV16 Handycam Vision camcorders. It includes safety warnings, a list of supplied accessories, step‑by‑step instructions for installing and charging the InfoLITHIUM battery pack, basic and advanced shooting functions, and detailed troubleshooting guidance.
The document also explains battery specifications, charging times, and provides an index of features such as SteadyShot, digital zoom, and built‑in light functions. Safety notices about electric shock and proper battery disposal are highlighted throughout the guide.
SONY CCD-TRV16 specifications
| Power requirements (battery) | 7.2 V |
|---|---|
| Power requirements (AC adaptor) | 8.4 V, 1.5 A |
| Operating temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage temperature | -4 °F to +140 °F (‑20 °C to +60 °C) |
| Total LCD dot count | 61,380 (279 × 220) |
| Minimum illumination (NightShot) | 0 lux (infrared lighting required) |
| Minimum illumination (normal mode) | 0.4 lux at F 1.4 |
Source: SONY CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/ TRV46/TRV46PK service manual
All SONY CCD-TRV16 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
How do I charge the battery pack?
Open the DC IN jack cover, connect the supplied AC power adaptor, plug the power cord into a wall outlet, set the POWER switch to OFF, and the battery will begin charging; a full charge is indicated by "FULL" after about one hour of normal charging.
