Start here

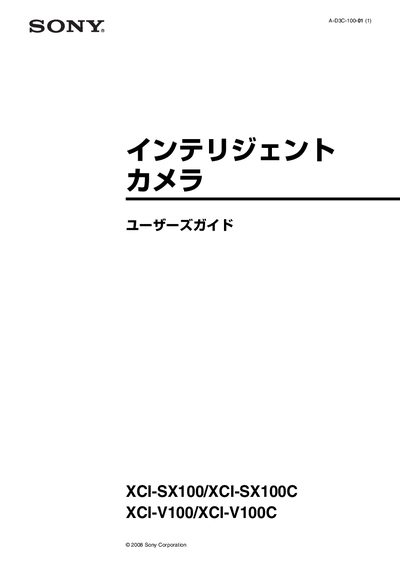

SONY XCI-SX100/SX100C/V100/V100C Manual
This guide covers the Sony XCLSX100, SX100C, V100, and V100C intelligent cameras, describing their high‑resolution CCD sensors, VIA Eden ULV processor, and built‑in interfaces such as LAN, VGA, and USB 2.0. It explains camera mounting, lens options, power requirements, and connection methods for peripherals and network integration.
The manual includes warranty terms (one‑year free repair), detailed pin‑out tables, system configuration, and mechanical dimensions, as well as safety notices for power, voltage, and handling of accessories. This manual is written in Japanese.
SONY V100 specifications
| Image sensor resolution (black‑and‑white models) | 1.25 MP CCD |
|---|---|
| Image sensor resolution (color models) | 0.33 MP CCD |
| Processor clock speed | 1 GHz |
| Memory | 512 MB DDR2 SDRAM |
| Video output | VGA (analog RGB) connector |
| USB interface | Hi‑speed USB 2.0 |
| Power supply requirement | 12 V DC, ≥2 A (≥24 VA) |
| External dimensions (CS‑mount reference) | 43.6 mm |
All SONY V100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the warranty period for the camera?
The free repair warranty lasts for one year from the date of purchase.
What power supply is required for the camera?
A 12 V DC power supply capable of at least 2 A (24 VA) is required.
