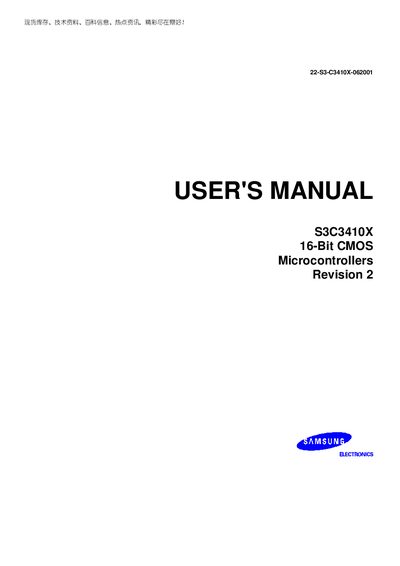

This is a user manual for S3C3410X 16-Bit CMOS Microcontrollers
This manual describes the Samsung S3C3410X 16/32‑bit RISC microcontroller, its architecture, and the revisions made to the original documentation. It includes revision history, errata corrections, and updated pin and register descriptions.
The document also details the on‑chip features such as the ARM7TDMI core, cache, DMA controller, UART, ADC, timers, interrupt controller, power modes, and mechanical package dimensions. It serves as a reference for designers and developers integrating the S3C3410X into handheld or general‑purpose embedded applications.
| Operating Voltage Range | 30V to 36V |
|---|---|
| Temperature Range | 0°C to 70°C |
| Operating Frequency | up to 40 MHz |
| Package Type | 128‑pin QFP |
| Interrupt Sources | 35 sources |
The S3C3410X is available in a 128‑pin QFP package.
It supports 35 interrupt sources.
The device operates from 30 V to 36 V.
The microcontroller can run up to 40 MHz.
