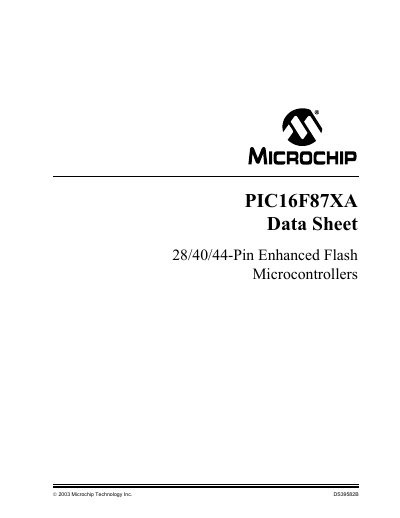

Microchip PIC16F87XA Enhanced Flash Microcontrollers Data Sheet
This document is a data sheet for the PIC16F87XA family of enhanced flash microcontrollers, which includes the PIC16F873A, PIC16F874A, PIC16F876A, and PIC16F877A models. The devices feature a high-performance RISC CPU with up to 8K words of Flash program memory and support operating speeds up to 20 MHz.
Read onlineMICROCHIP PIC16F87XA specifications
| Operating Speed | DC - 20 MHz clock input |
|---|---|
| Instruction Cycle | DC - 200 ns |
| Program Memory | Up to 8K x 14 words |
| Data Memory (RAM) | Up to 368 x 8 bytes |
| EEPROM Memory | Up to 256 x 8 bytes |
| A/D Converter Resolution | 10-bit |
| Flash Erase/Write Cycles | 100,000 typical |
| EEPROM Erase/Write Cycles | 1,000,000 typical |
| Operating Voltage | 2.0V to 5.5V |
Source: Microchip PIC16F87XA Enhanced Flash Microcontrollers Data Sheet
All MICROCHIP PIC16F87XA documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating speed of the PIC16F87XA?
The maximum operating speed is a 20 MHz clock input, resulting in a 200 ns instruction cycle.
From: Microchip PIC16F87XA Enhanced Flash Microcontrollers Data Sheet
What is the typical retention time for the Data EEPROM?
The Data EEPROM memory has a typical retention time of greater than 40 years.
From: Microchip PIC16F87XA Enhanced Flash Microcontrollers Data Sheet
