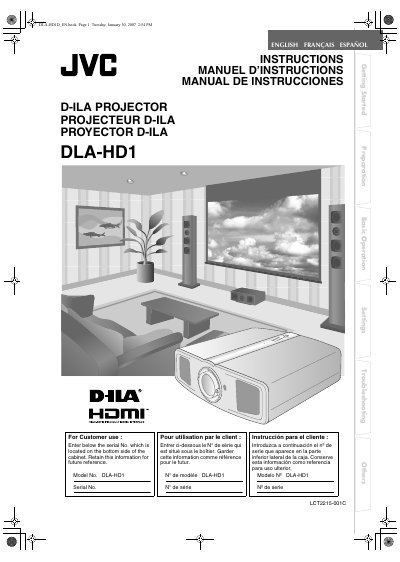

JVC DLA-HD1 Projector User Manual
This document serves as the official instruction guide for the JVC DLA-HD1 projector. It provides essential information regarding safety precautions, including warnings about electrical hazards, proper ventilation requirements, and disposal of the high-intensity discharge lamp containing mercury.
The manual details the preparation steps for installation, such as ensuring a sturdy mounting surface and maintaining adequate clearance around the unit to prevent overheating. It also covers basic operation guidelines, settings configuration, and troubleshooting procedures for common issues.
JVC DLA-HD1 specifications
| Projection Lens | 2.0× power zoom (1.4:1 f/2.8) |
|---|---|
| Lamp Type | 200 W ultra‑high pressure mercury lamp (BHL5009‑S) |
| Power Requirements | AC 110‑240 V, 50/60 Hz |
| Power Consumption | 280 W (standby 2.7 W) |
| Mass | 11.6 kg (25.5 lb) |
All JVC DLA-HD1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety precaution is required when cleaning the projector?
You must unplug the product from the wall outlet before cleaning it.
What type of lamp is used in this projector?
The projector uses a high pressure mercury lamp.
What are the power requirements and consumption of the projector?
The projector operates on AC 110‑240 V, 50/60 Hz and consumes 280 W during use, with a standby power draw of 2.7 W.
