Start here

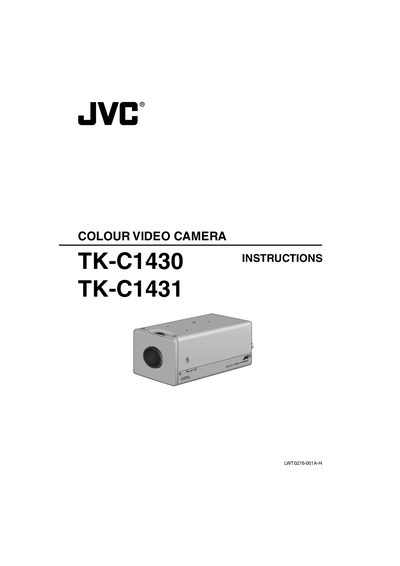

JVC TK-C1430/TK-C1431 Camera Instruction Manual
This manual covers safety precautions, installation steps, menu settings, and maintenance for the JVC TK‑C1430E and TK‑C1431EG colour video cameras. It includes detailed instructions for mounting, lens adjustment, power connections, and operating the camera's features such as motion detection and electronic zoom.
Technical specifications are listed, including sensor type, resolution, power requirements, operating temperature range, and physical dimensions. The document also provides troubleshooting guidance and recommended service procedures.
JVC TK-C1430E specifications
| CCD Sensor | F1.2, 50% AGC 20dB |
|---|---|
| SENSE UP | 32× optical sensitivity |
| Electronic Zoom | 10× |
| Power Input | DC 12 V or AC 24 V |
| Operating Temperature | -10 °C to 50 °C |
Source: JVC TK-C1430ECManual
All JVC TK-C1430E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What should be done to avoid fire and electric shock when using the camera?
Do not allow the device to be exposed to fire or electric shock.
From: JVC TK-C1430ECManual
What power sources can be used with the TK‑C1430EC camera?
The camera can be powered by a DC 12 V supply or an AC 24 V supply.
From: JVC TK-C1430ECManual
