Key facts
- Brand
- JVC
- Model
- GR-D290
- Industry
- Electronics
- Documents
- 3
- Languages
- EN · ZH
- Last added
- 2012-05-04
Start here

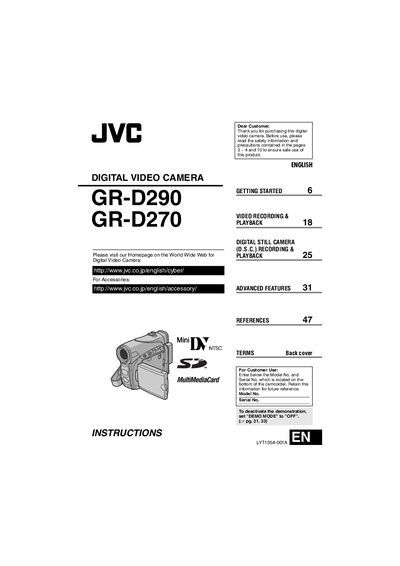

JVC GR-D290 / GR-D270 User Manual
This manual covers the JVC GR-D290 and GR-D270 digital video camcorders, describing how to get started, use advanced features, and connect to external devices. It includes safety precautions, battery handling, and troubleshooting tips.
The document also lists detailed specifications such as power requirements, dimensions, weight, recording formats, and connector types, helping users understand the capabilities and limits of the camcorders.
JVC GR-D290 specifications
| Power supply | DC 11 V (Using AC Adapter) |
|---|---|
| Power consumption (LCD off) | Approx. 3.2 W (3.5 W*) |
| Dimensions (W x H x D) | 56 mm x 94 mm x 112 mm |
| Weight (without battery) | Approx. 430 g (0.95 lbs) |
| Lens | F 1.8, f=2.2 mm to 55 mm, 25:1 power zoom |
| Recording format | DV format (SD mode) |
| Tape speed | SP: 18.8 mm/s, LP: 12.5 mm/s |
| Storage media | SD Memory Card / MultiMediaCard |
| USB interface | Mini USB‑B, USB 1.1/2.0 (Full speed GR‑D270, High speed GR‑D290) |
All JVC GR-D290 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I deactivate the demonstration mode?
Set the “DEMO MCDE” switch to OFF.
What type of battery does the camcorder use?
It uses JVC Data Battery packs (BN‑VF707U, VF714U, or VF733U).
How do I deactivate the demonstration mode?
Set the “DEMO MCDE” switch to OFF.
From: JVC GR-D290 / GR-D270 Digital Video Camera User Manual
What battery type does the camcorder use?
It uses JVC Data Battery packs (BN‑VF707U, VF714U, or VF733U).
From: JVC GR-D290 / GR-D270 Digital Video Camera User Manual
Does the camcorder work with PAL TV signals?
Yes, the camcorder is designed for PAL color TV signals only.
Can I use any Mini‑DV tape with the camcorder?
The camcorder accepts any Mini‑DV tape that meets the standard, but JVC‑branded tapes are recommended for best performance.
