Start here

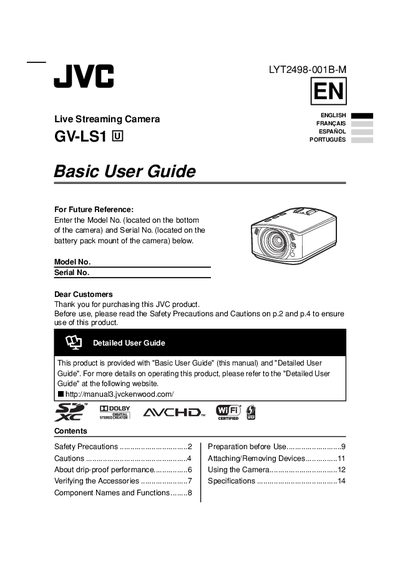

JVC GV-LS1 Live Streaming Camera Basic User Guide
User Manual 64 pages · 7 MB · EN
This guide begins with safety precautions, handling warnings, and drip‑proof performance information to ensure safe use of the GV‑LS1 camera. It then describes the accessories, component functions, and preparation steps before operating the device.
Subsequent sections cover connecting the camera to a computer or network, configuring video and audio settings via a web interface, and detailed specifications such as power requirements, dimensions, and sensor data. The guide also includes battery‑pack handling and disposal instructions.
JVC GV-LS1 specifications
| Power supply (AC adapter) | DC 5 V |
|---|---|
| Power supply (battery pack) | DC 3.6 V |
| Power consumption | 4.2 W |
| Dimensions (W × H × D) | 73 mm × 48 mm × 90 mm |
| Mass (excluding battery) | 179 g |
| Operating temperature range | 0 °C to 40 °C |
| Storage temperature range | –20 °C to 50 °C |
| Relative humidity (operating) | 35 % to 80 % |
| Image sensor | 1/2.3" BSI CMOS, 12.40 MP |
| Lens aperture | f/2.8 (3.8 mm) |
| Audio format | Dolby Digital 2‑ch |
| Supported media | SD, SDHC, SDXC cards (not supplied) |
| Wired network standard | 10BASE‑T/100BASE‑TX |
| Wireless network standard | IEEE 802.11b/g/n (2.4 GHz) |
All JVC GV-LS1 documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Installation Guide 1
Mounting, wiring and first power-up. Read it before the hardware goes in.
