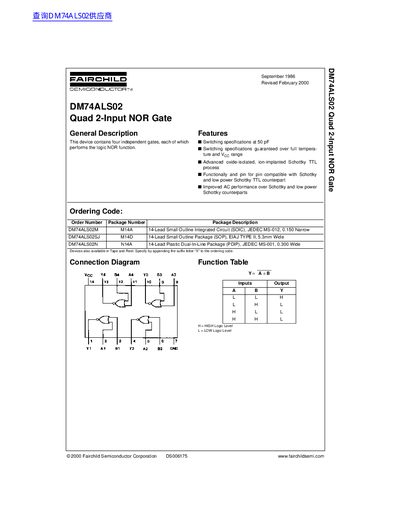

Fairchild Semiconductor DM74ALS02 Quad 2-Input NOR Gate Datasheet
This document is a datasheet for the DM74ALS02, a quad 2-input NOR gate integrated circuit manufactured by Fairchild Semiconductor. The device contains four independent gates that perform the logic NOR function and is functionally and pin-for-pin compatible with Schottky and low power Schottky TTL counterparts. It features an advanced oxide-isolated, ion-implanted Schottky TTL process with improved AC performance.
Read onlineFairchild DM74ALS02 specifications
| Supply Voltage (VCC) | 4.5 V – 5.5 V |
|---|---|
| Input HIGH Level Voltage | 2 V |
| Operating Temperature Range | 0 °C – 70 °C |
| Package Options | SOIC (M1i4A), SOP (M14D), PDIP (N14A) |
| Compatibility | Pin‑for‑pin compatible with Schottky TTL |
All Fairchild DM74ALS02 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What logic function does the DM74ALS02 perform?
The device contains four independent gates, each of which performs the logic NOR function.
From: Fairchild Semiconductor DM74ALS02 Quad 2-Input NOR Gate Datasheet
Is the DM74ALS02 compatible with other TTL types?
Yes, it is functionally and pin for pin compatible with Schottky and low power Schottky TTL counterparts.
From: Fairchild Semiconductor DM74ALS02 Quad 2-Input NOR Gate Datasheet
What is the maximum supply voltage for the DM74ALS02?
The maximum supply voltage is 5.5 V.
What temperature range is recommended for normal operation?
The recommended operating temperature range is 0 °C to 70 °C.
