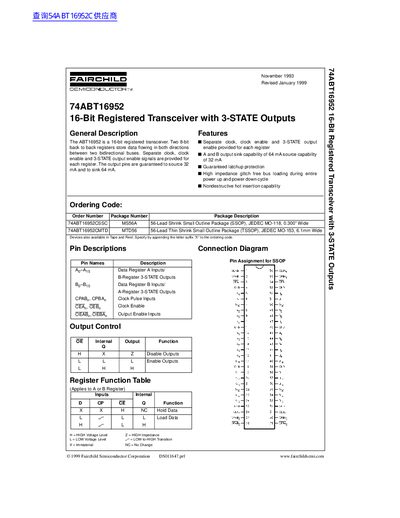

FAIRCHILD 74ABT16952 16-Bit Registered Transceiver with 3-STATE Outputs handbook
The document describes the Fairchild ABT16952, a 16-bit registered transceiver designed to store data flowing in both directions between two bidirectional buses. The device features separate clock, clock enable, and 3-STATE output enable signals for each of its registers.
Read onlineFairchild 74ABT16952 specifications
| Supply Voltage | +4.5V to +5.5V |
|---|---|
| Output Sink Capability (A and B) | 64 mA |
| Output Source Capability | 32 mA |
| Package Types | SSOP, TSSOP |
Source: FAIRCHILD 74ABT16952 16-Bit Registered Transceiver with 3-STATE Outputs handbook
All Fairchild 74ABT16952 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum clock frequency for the SSOP package?
The maximum clock frequency for the SSOP package is 200 MHz.
From: FAIRCHILD 74ABT16952 16-Bit Registered Transceiver with 3-STATE Outputs handbook
What are the input voltage limits?
Input voltages range from -0.5V to +7.0V.
From: FAIRCHILD 74ABT16952 16-Bit Registered Transceiver with 3-STATE Outputs handbook
What is the primary function of the 74ABT16541?
It contains sixteen non-inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus oriented transmitter/receiver.
From: FAIRCHILD semiconductor 74ABT16952 16-Bit Registered Transceiver with 3-STATE Outputs handbook
Can the control inputs be shorted together?
Yes, individual 3-STATE control inputs can be shorted together for either 8-bit or 16-bit operation.
