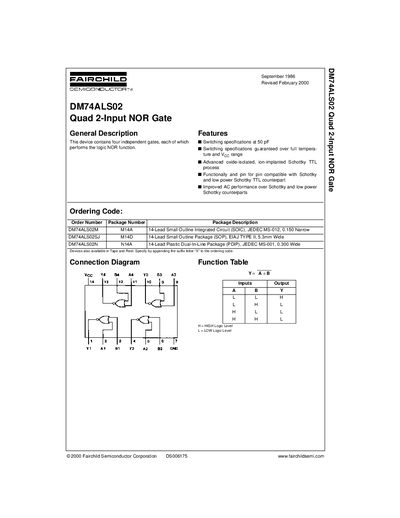

The DM74ALS02 is a quad 2-input NOR gate from Fairchild Semiconductor. The device contains four independent gates, each of which performs the logic NOR function. The DM74ALS02 has a switching specification at 50 pF and switching specifications guaranteed over full temperature and VCC range. It is available in Tape and Reel and is pin-compatible with Schottky and low power Schottky TTL counterpart.
The DM74ALS02 is a quad 2‑input NOR gate fabricated with Fairchild's advanced oxide‑isolated, ion‑implanted Schottky TTL process. It offers four independent gates that are functionally and pin‑for‑pin compatible with standard Schottky TTL devices.
The document provides detailed electrical characteristics, absolute maximum ratings, recommended operating conditions, package dimensions for SOIC, SOP and PDIP variants, and ordering information. It also includes a life‑support policy disclaimer.
| Supply Voltage (VCC) | 4.5 V – 5.5 V |
|---|---|
| Input HIGH Level Voltage | 2 V |
| Operating Temperature Range | 0 °C – 70 °C |
| Package Options | SOIC (M1i4A), SOP (M14D), PDIP (N14A) |
| Compatibility | Pin‑for‑pin compatible with Schottky TTL |
The maximum supply voltage is 5.5 V.
The recommended operating temperature range is 0 °C to 70 °C.
It is offered in 14‑lead SOIC (M1i4A), SOP (M14D), and PDIP (N14A) packages.
Yes, it is functionally and pin‑for‑pin compatible with Schottky TTL devices.
