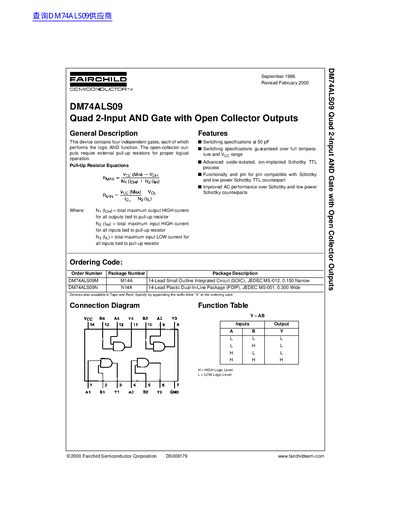

Fairchild Semiconductor DM74ALS09 Quad 2-Input AND Gate Datasheet
This document is a datasheet for the Fairchild Semiconductor DM74ALS09, a quad 2-input AND gate with open collector outputs. The device contains four independent gates that perform the logic AND function and requires external pull-up resistors for proper operation. It utilizes an advanced oxide-isolated, ion-implanted Schottky TTL process and is functionally and pin-for-pin compatible with Schottky and low power Schottky TTL counterparts.
Read onlineFairchild DM74ALS09 specifications
| Operating Temperature Range | 0°C to +70°C |
|---|---|
| Storage Temperature Range | -65°C to +150°C |
| Switching Specifications | at 50 pF |
Source: Fairchild Semiconductor DM74ALS09 Quad 2-Input AND Gate Datasheet
All Fairchild DM74ALS09 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the logic function of the DM74ALS09?
Each of the four independent gates performs the logic AND function.
From: Fairchild Semiconductor DM74ALS09 Quad 2-Input AND Gate Datasheet
Do the outputs require external components?
Yes, the open-collector outputs require external pull-up resistors for proper logical operation.
From: Fairchild Semiconductor DM74ALS09 Quad 2-Input AND Gate Datasheet
What is the maximum supply voltage for the DM74ALS09?
The device can be operated up to 55 V supply voltage.
Is the DM74ALS09 suitable for life‑support applications?
No, Fairchild does not authorize its use in life‑support devices without explicit written approval.
