Start here

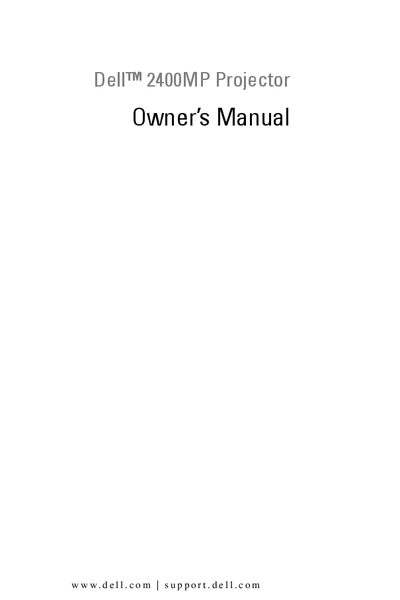

Dell 2400MP Projector User Manual
This manual covers everything you need to get the Dell 2400MP projector up and running, from unpacking the package to connecting video sources and adjusting the image. Detailed sections explain the control panel, remote functions, on‑screen display, and how to replace the lamp safely.
Technical specifications, RS‑232 command details, and regulatory notices are also included, giving technicians and advanced users the information required for installation, maintenance, and integration with other equipment. This manual is written in Chinese.
DELL 2400MP specifications
| Brightness | 3000 ANSI Lumens (Max.) |
|---|---|
| Contrast Ratio | 2100:1 Typical |
| Lamp | 260‑watt, user‑replaceable 2000‑hour (up to 2500 h eco) |
| Resolution | 1024 × 768 (XGA) |
| Weight | <5.5 lb (2.4 kg) |
| Dimensions | 10.8 × 8.3 × 4 in (W × H × D) |
| Power Consumption | 325 W typical (285 W eco mode) |
| Audio Output | 1 speaker, 2 W RMS |
| Power Supply | Universal 100‑240 V AC, 50‑60 Hz with PFC |
All DELL 2400MP documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do you replace the lamp?
The lamp is a user‑replaceable 260‑watt unit rated for 2000 hours (up to 2500 hours in eco mode).
What video input connectors are available?
The projector provides VGA‑in, VGA‑out (monitor loop‑through), composite video, S‑video, and component video connectors.
How can I adjust the image size on the Dell 2400MP projector?
Select the image size adjustment option in the on‑screen menu to change the projected image size.
What does the warning symbol indicate in the manual?
The warning symbol indicates a possible risk of property damage, personal injury, or death.
How do I connect the projector to a DVD player?
Use an S‑Video cable or a composite video cable as described in the connection section.
How can I adjust the projector height?
The manual provides step‑by‑step instructions for raising or lowering the projector height.
