Start here

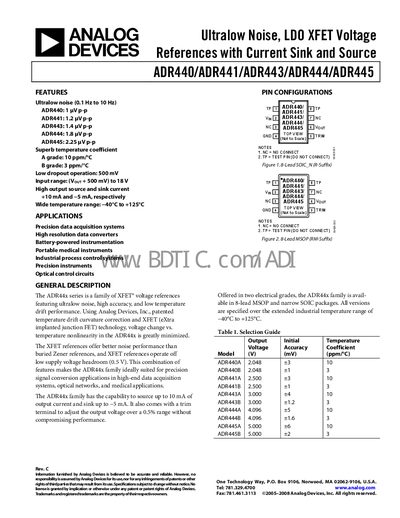

ANALOG DEVICES ADR440/ADR441/ADR443/ADR444/ADR445 handbook (1)
The ADR44x family of XFET voltage references offers ultralow noise (0.1 Hz to 10 Hz) and superb temperature stability, with A‑grade parts achieving 10 ppm/°C and B‑grade parts 3 ppm/°C. They operate from 3 V to 18 V supply voltage, feature a low dropout of 500 mV, and can source up to +10 mA or sink up to –5 mA.
These devices are intended for precision data‑acquisition systems, high‑resolution converters, battery‑powered instrumentation, medical instruments, and industrial process control. The series is available in 8‑lead SOIC and MSOP packages and is rated for –40 °C to +125 °C operation.
Analog Devices ADR445 specifications
| Noise (0.1 Hz‑10 Hz) | 1 pV p‑p (ADR440) to 2.25 µV p‑p (ADR445) |
|---|---|
| Temperature Coefficient | A grade: 10 ppm/°C, B grade: 3 ppm/°C |
| Dropout Voltage | 500 mV |
| Supply Voltage Range | 3 V to 18 V |
| Output Current Capability | +10 mA source, –5 mA sink |
| Operating Temperature Range | –40 °C to +125 °C |
| Initial Accuracy (A grade) | 3 mV (0.15 %) |
| Short‑Circuit Duration | Indefinite |
Source: ANALOG DEVICES ADR440/ADR441/ADR443/ADR444/ADR445 handbook (1)
All Analog Devices ADR445 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the ADR440?
The ADR440 operates from 3 V to 18 V.
From: ANALOG DEVICES ADR440/ADR441/ADR443/ADR444/ADR445 handbook (1)
What is the output noise of the ADR445?
The ADR445 has an output noise of 2.25 µV p‑p from 0.1 Hz to 10 Hz.
From: ANALOG DEVICES ADR440/ADR441/ADR443/ADR444/ADR445 handbook (1)
What is the maximum supply voltage the device can tolerate?
The absolute maximum supply voltage rating is 20 V.
From: Analog Devices ADR440/ADR441/ADR443/ADR444/ADR445 Datasheet
How long can the output be short‑circuited to ground?
The output short‑circuit duration to ground is indefinite.
From: Analog Devices ADR440/ADR441/ADR443/ADR444/ADR445 Datasheet
