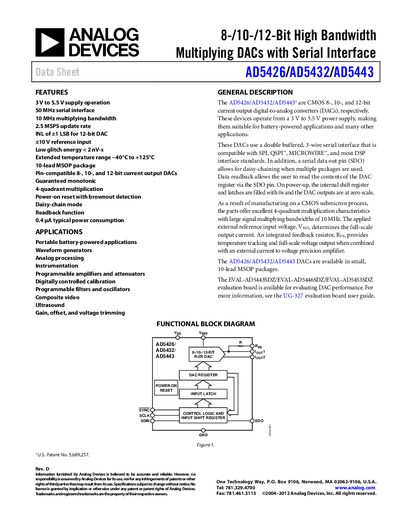

AD5426/AD5432/AD5443 are 8/10/12-bit high bandwidth serial interface multiplying DACs manufactured by Analog Devices
The AD5426, AD5432 and AD5443 are CMOS current‑output DACs available in 8‑, 10‑ and 12‑bit resolutions. They operate from a 3 V to 5.5 V supply, support a 10 V reference input, and provide up to 10 MHz multiplying bandwidth with low glitch energy.
The devices use a 3‑wire serial interface compatible with SPI, MICROWIRE and other DSP standards, include daisy‑chain and read‑back capabilities, and are offered in a 10‑lead MSOP package. Detailed specifications, timing characteristics, pin functions and ordering information are provided in the document.
| Supply Voltage Range | 3 V to 5.5 V |
|---|---|
| Resolution (AD5426) | 8 bits |
| Resolution (AD5432) | 10 bits |
| Resolution (AD5443) | 12 bits |
| Relative Accuracy (AD5426) | +0.25 LSB |
| Differential Nonlinearity (AD5432) | +1 LSB |
| Maximum Serial Clock Frequency | 50 MHz |
| Temperature Range (Y version) | ‑40 °C to +125 °C |
| Power Supply Sensitivity | 0.001 %/Vpp = 5 % |
The AD5426 operates from a 3 V to 5.5 V supply.
The devices support a maximum serial clock frequency of 50 MHz.
The Y version is rated for –40 °C to +125 °C.
The AD5443 provides a 12‑bit resolution.
