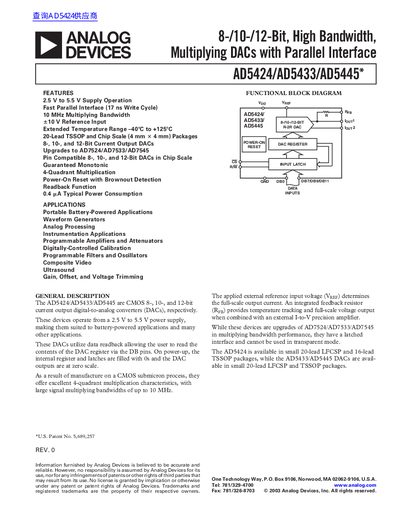

AD5424/AD5433/AD5445 is 8-/10-/12-bit, high bandwidth, multiplying DACs with parallel interface
The AD5424, AD5433, and AD5445 are CMOS current‑output digital‑to‑analog converters (DACs) offering 8‑, 10‑, and 12‑bit resolution respectively. They operate from a 2.5 V to 5.5 V supply, making them suitable for battery‑powered and portable applications. The devices feature a fast parallel interface with a 17 ns write cycle and provide data readback capability.
Key features include a 10 MHz multiplying bandwidth, +10 V reference input, extended temperature range of –40 °C to +125 °C, and low typical power consumption (0.4 µA). They are offered in 20‑lead TSSOP and 20‑lead LFCSP (chip‑scale) packages and are pin‑compatible upgrades of the AD7524/AD7533/AD7545 family.
| Resolution | 8‑bit (AD5424), 10‑bit (AD5433), 12‑bit (AD5445) |
|---|---|
| Supply Voltage Range | 2.5 V to 5.5 V |
| Reference Input Range | +10 V |
| Multiplying Bandwidth | 10 MHz |
| Typical Power Consumption | 0.4 µA |
| Operating Temperature Range | -40 °C to +125 °C |
They operate from a 2.5 V to 5.5 V supply.
Yes, the devices provide a readback function that allows the DAC register contents to be read via the DB pins.
The multiplying bandwidth is up to 10 MHz.
They are offered in 20‑lead TSSOP and 20‑lead LFCSP (chip‑scale) packages.
