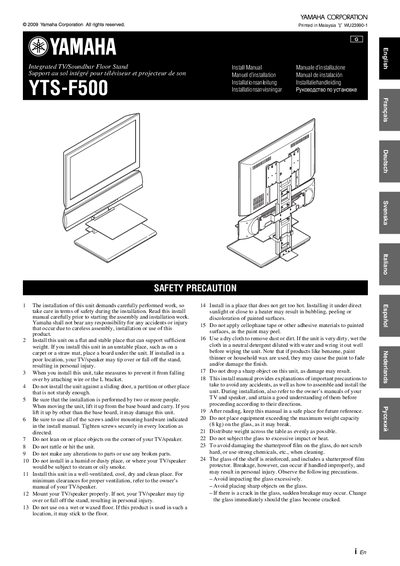

Yamaha YTS-F500 Integrated TV/Soundbar Floor Stand Installation Manual
This document is an installation guide for the Yamaha YTS-F500 Integrated TV/Soundbar Floor Stand. It provides essential safety precautions regarding weight limits (8 kg), surface stability, and ventilation before beginning assembly.
The manual details the supplied parts list, including brackets, screws of various sizes, and non-skid pads. It outlines a step-by-step procedure for assembling the floor stand base and attaching mounting hardware for televisions or speakers.
Yamaha YTS-F500 specifications
| Compatible TV size | up to 52-inch |
|---|---|
| Compatible TV weight | under 45 kg |
| Dimensions (W x H x D) | 650 x 867 x 398 mm |
Source: YAMAHA YTS-F500 User Manual
All Yamaha YTS-F500 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How many people are required to install this unit?
The installation must be performed by two or more people.
From: Yamaha YTS-F500 Integrated TV/Soundbar Floor Stand Installation Manual
What is the maximum weight capacity for the glass shelf?
Do not place equipment exceeding 8 Kg on the glass.
From: Yamaha YTS-F500 Integrated TV/Soundbar Floor Stand Installation Manual
Which Yamaha speaker models are compatible with the YTS-T500?
The compatible speaker models are YSP-4000, YSP-5100/4100, YAS-81/71, and YHT-S1400/S400.
What is the maximum screw diameter allowed for installation?
The diameter of the screws should be up to 8 mm.
