YAMAHA YTS-F500 User Manual

This manual explains the installation steps for the speaker.

Brand: Yamaha
Document type: Installation Guide
Language: English
Pages: 14
File format: PDF
File size: 5.8 MB
Published: 02 July, 2012
Updated: 30 September, 2023
Model: YTS-F500
MD5 checksum: 891643456D87F5DEE39CBBBB738E52B5
PDF: YAMAHA YTS-F500 User Manual PDF

About this manual

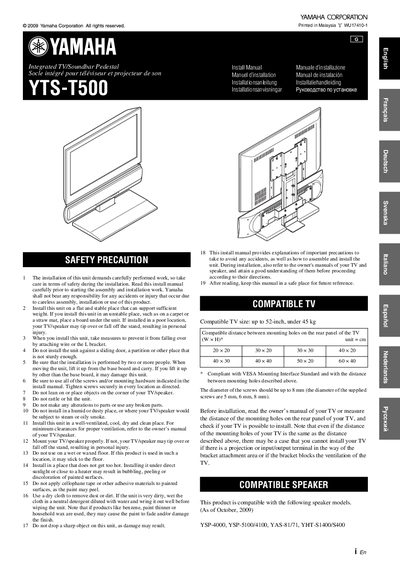

This document is the installation manual for the Yamaha YTS-T500 Integrated TV/Soundbar Pedestal. It provides safety precautions, lists of supplied parts, and detailed assembly instructions for mounting the pedestal base and attaching a compatible television and soundbar system.

What's inside

Safety Precautions
Supplied Parts
Compatible TV
Compatible Speaker
Specifications
Assembling the Pedestal
Installing the TV
Mounting the Speaker

Specifications

Compatible TV size	up to 52-inch
Compatible TV weight	under 45 kg
Dimensions (W x H x D)	650 x 867 x 398 mm

Frequently asked questions

Which Yamaha speaker models are compatible with the YTS-T500?

The compatible speaker models are YSP-4000, YSP-5100/4100, YAS-81/71, and YHT-S1400/S400.

What is the maximum screw diameter allowed for installation?

The diameter of the screws should be up to 8 mm.
