Start here

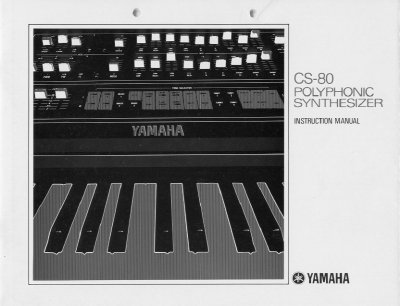

Yamaha CS-80 Polyphonic Synthesizer Instruction Manual
This document is the official instruction manual for the Yamaha CS-80, a unique 8-note polyphonic synthesizer designed to be playable by both technical and non-technical musicians. It serves as a comprehensive reference guide that complements the instrument itself.
The manual provides detailed instructions on physical assembly (leg setup), connections, and quick start procedures. It includes extensive sections describing programmable panels, memory usage, suggested patches, and technical control descriptions for synthesizer components like VCOs, VCFs, and VCAs.
Yamaha CS-80 specifications
| Polyphony | 8 notes |
|---|---|
| Voice Sets | 16 sets |
| Output Voltage | 0.775 volts |
| Control Voltage Range | 10 volts or less |
All Yamaha CS-80 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many notes can the CS-80 play simultaneously?
The CS-80 allows you to play 8 notes at a time.
What is the main difference between a synthesizer and an electric organ?
Synthesizers usually offer no presets and provide infinitely adjustable sounds, whereas organs offer a wide variety of preset sounds.
How many people are needed to lift the synthesizer?
At least two people should do the lifting when setting it up or transporting it.
From: Yamaha CS-80 Polyphonic Synthesizer Instruction Manual
What type of power cord is required?
The manual instructs to remove the power cord from the storage panel and plug it into a suitable AC power main.
From: Yamaha CS-80 Polyphonic Synthesizer Instruction Manual
