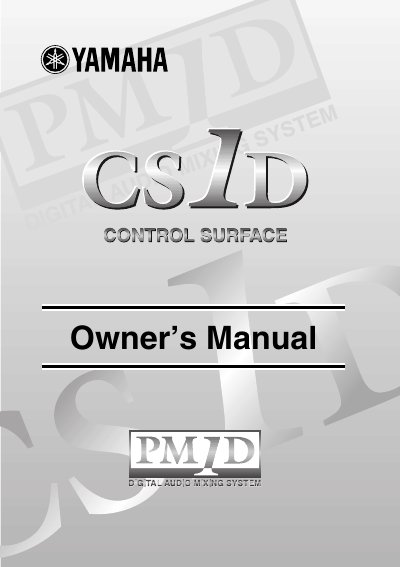

Yamaha CS1D Control Surface Owner's Manual
The Yamaha CS1D Control Surface is a digital mixing console designed for professional audio applications. This Owner's Manual covers essential safety precautions, including warnings about electrical shock, water exposure, and proper ventilation. It also details specific handling instructions for the LCD display, track pad, and the included PM1D System Software disc to prevent damage or data loss.
Read onlineAll Yamaha CS1D documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What safety step is required before installing the module?
You must turn off the power to the console before installation.
From: YAMAHA CS1D Manual
How many ribbon cables must be removed during installation?
You need to remove four ribbon cables from the inside of the module.
From: YAMAHA CS1D Manual
What is the minimum number of people required to move the CS1D?
You must use at least two people when moving this unit because it is heavy.
How long must you wait between turning the power on and off?
You must allow at least five seconds to elapse between power-on and power-off.
