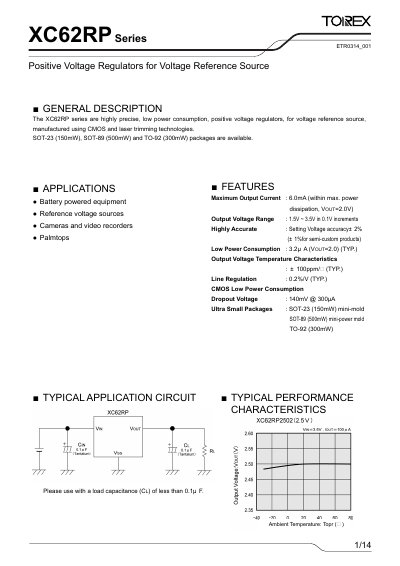

The XC62RP series are highly precise, low power consumption, positive voltage regulators, for voltage reference source, manufactured using CMOS and laser trimming technologies. SOT-23 (150mW), SOT-89 (500mW) and TO-92 (300mW) packages are available.
The XC62RP series are highly precise, low‑power positive voltage regulators designed for battery‑powered equipment, reference voltage sources, cameras, video recorders, and palmtops. They are offered in ultra‑small SOT‑23, SOT‑89, and TO‑92 packages.
The document details electrical characteristics such as output voltage range, maximum output current, dropout voltage, line regulation, and temperature performance, along with pin assignments, typical application circuits, performance graphs, packaging options, and marking rules.
| Output Voltage Range | 1.5V ~ 3.5V |
|---|---|
| Maximum Output Current | 6.0 mA |
| Dropout Voltage (typical) | 140 mV @ 300 µA |
| Line Regulation | 0.2 %/V (typ) |
| Power Dissipation (SOT‑23) | 150 mW |
| Power Dissipation (SOT‑89) | 500 mW |
| Power Dissipation (TO‑92) | 300 mW |
| Operating Temperature Range | -30 °C ~ +80 °C |
| Supply Current (typical) | 3.2 µA |
| Package Options | SOT‑23, SOT‑89, TO‑92 |
The maximum output current is 6.0 mA (within max. power dissipation, VOUT=2.0 V).
They are available in SOT‑23, SOT‑89, and TO‑92 packages.
Typical dropout voltage is 140 mV at a load of 300 µA.
Line regulation is 0.2 % per volt (typical).
