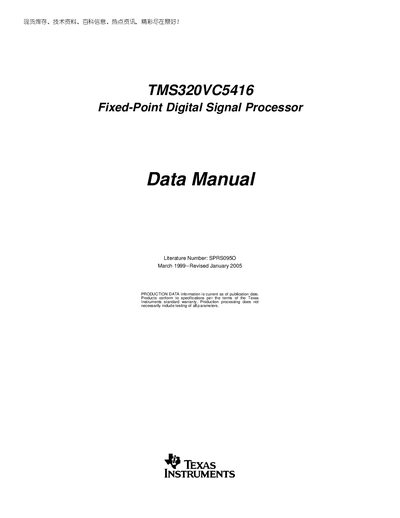

This document is the data manual for TMS320VC5416 Fixed-Point Digital Signal Processor, providing information on the technical specifications, features, and revision history of the product.
This data manual describes the TMS320VC5416 fixed‑point digital signal processor, covering functional overview, electrical specifications, memory architecture, and on‑chip peripherals. It includes revision history, package options, and mechanical data for design reference.
Key sections include pin assignments for the GGU and PGE packages, detailed timing parameters for clocks, DMA, and serial ports, as well as memory maps and register descriptions. The document also provides absolute maximum ratings and recommended operating conditions.
| Igy output current limit | -8 mA |
|---|---|
| Io output current limit | 8 mA |
| Package type (PGE) | S‑PQFP‑G144 plastic quad flatpack |
| Package pin count | 144 pins |
Igy is limited to –8 mA and Io to 8 mA.
See Section 2.2.1 “Terminal Assignments for the GGU Package”.
