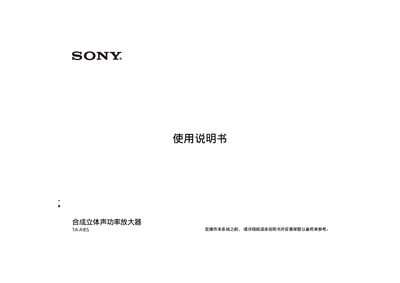

The Sony TA‑A1ES stereo power amplifier user manual provides setup, operation, safety, troubleshooting, and specifications.
This manual covers safety precautions, component identification, and the proper way to connect speakers and audio sources to the TA‑A1ES amplifier. It explains front‑panel controls, rear‑panel terminals, and remote‑control functions, as well as how to set speaker impedance and use the auto‑standby feature.
The guide also details audio playback, headphone settings, initial configuration, and includes a full specifications table, troubleshooting tips, and accessory information such as the supplied AC power cord and remote control. This manual is written in Chinese.
| Rated output power | 80 W + 80 W (20 Hz–20 kHz, 0.15 % THD at 8 Ω) |
|---|---|
| Frequency response | 10 Hz–100 kHz ± 3 dB (8 Ω) |
| Total harmonic distortion | 0.008 % at 1 kHz, 10 W into 8 Ω |
| Input sensitivity (unbalanced) | 150 mV |
| Signal‑to‑noise ratio | 96 dB |
| Power consumption (standby) | 0.4 W |
| Dimensions (approx.) | 430 mm × 130 mm × 420 mm |
| Weight (approx.) | 17.0 kg |
Set the AUTO STANDBY switch to ON; if no audio is output for about 10–15 minutes, the amplifier automatically switches to standby mode.
The amplifier delivers 80 W per channel (80 W + 80 W) over 20 Hz–20 kHz with 0.15 % THD into an 8 Ω load.
