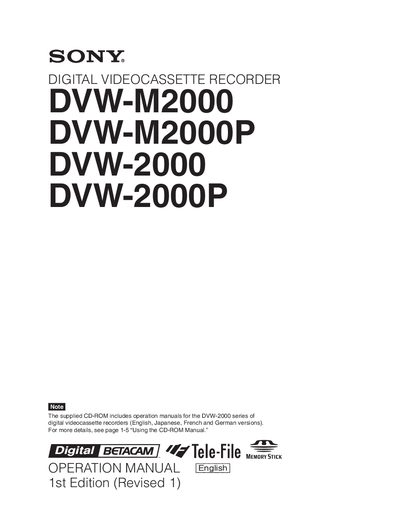

SONY DVW-M2000/M2000P/2000/2000P Manual
This manual covers safety precautions, power requirements, and basic handling of the DVW-M2000 digital videocassette recorder. It warns users not to expose the unit to moisture, to keep the cabinet closed, and to ensure the apparatus is properly earth‑grounded.
The guide details the recorder’s features, including high‑performance heads, 4U compact size, digital Betacam recording, and multiple input/output interfaces such as SDI SMPTE‑259M and AES/EBU. It also explains recording and playback procedures, editing functions, menu navigation, and routine maintenance tasks.
SONY DVW-M2000 specifications
| Power voltage range | AC 100‑240 V |
|---|---|
| Power frequency | 50 Hz or 60 Hz |
| Maximum power consumption | 240 W |
| Rush current (HDW‑2000) | 20 A (100 V) / 40 A (240 V) |
| Operating temperature | 5 °C to 40 °C |
| Operating humidity | 25 % to 80 % (non‑condensing) |
| Rear clearance when rack‑mounted | ≥10 cm (4 inches) |
| Power cord supplied | Not supplied; must be ordered separately |
All SONY DVW-M2000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What power voltage range does the unit accept?
The unit operates on AC power from 100 V to 240 V.
What is the maximum power consumption of the equipment?
Maximum power consumption is 240 W.
What safety precautions are required when using the DVW‑M2000?
Do not expose the unit to rain or moisture, keep the cabinet closed, and ensure the apparatus is earth‑grounded.
What power‑cord specifications are needed for operation in the United States?
Use a UL‑listed NEMA 5‑15P power cord rated at a minimum of 10 A, 125 V, with a length between 1.5 m and 2.5 m.
