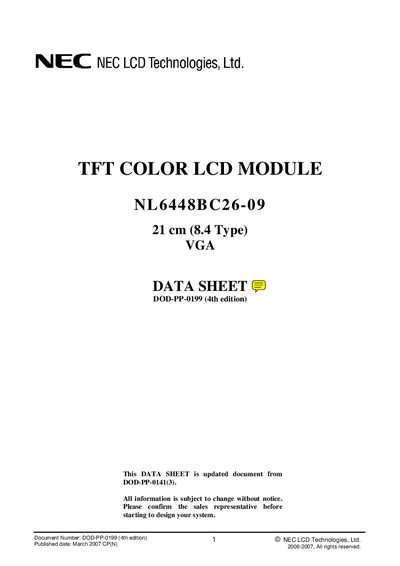

This is a 21cm TFT color LCD module, model NL6448BC26-09, supports VGA interface.
The NL6448BC26-09 is a 21 cm (8.4‑inch) TFT color LCD module with an a‑Si active‑matrix panel, driver LSIs and edge‑light backlight. It is intended for industrial use and complies with UL60950‑1 and RoHS.
Key specifications include a 640 × 480 pixel resolution, 262,144 colors, 600:1 contrast ratio, 80° horizontal viewing angle, typical power consumption of 5.3 W, and a module size of 200 × 152 × 10.5 mm.
| Display area | 170.88 mm × 128.16 mm |
|---|---|
| Diagonal size | 21 cm (8.4 inches) |
| Resolution | 640 × 480 pixels |
| Colors | 262,144 |
| Contrast ratio | 600:1 (typ.) |
| Viewing angle (horizontal) | 80° (typ.) |
| Backlight type | Edge light, 2 cold‑cathode fluorescent lamps |
| Weight | 330 g (typ.) |
| Module size | 200.0 mm × 152.0 mm × 10.5 mm (typ.) |
The typical contrast ratio is 600:1.
The module weighs about 330 g typical.
Horizontal viewing angle is 80° on both right and left sides (typ.).
