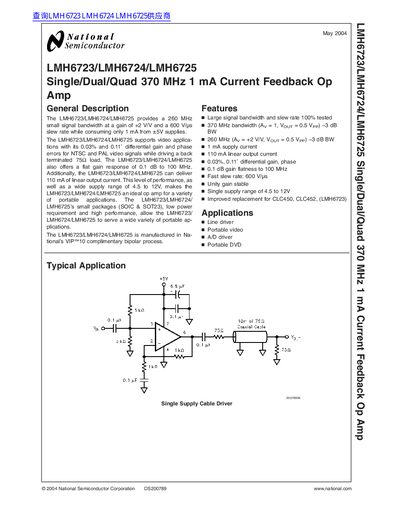

National Semiconductor LMH6723/LMH6724/LMH6725 Single/Dual/Quad 370 MHz 1 mA Current Feedback Op Amp handbook
This document provides technical specifications and performance characteristics for the National Semiconductor LMH6723 (Single), LMH6724 (Dual), and LMH6725 (Quad) Current Feedback Operational Amplifiers. These devices are designed to offer high bandwidth up to 370 MHz at unity gain while consuming only 1 mA of supply current from +5V supplies.
Read onlineNational Semiconductor LMH6723 specifications
| -3 dB Bandwidth (Gain +2) | 260 MHz |
|---|---|
| Supply Current | 1 mA |
| Linear Output Current | 110 mA |
| Slew Rate | 600 V/us |
| Supply Voltage Range | 4.5 to 12V |
All National Semiconductor LMH6723 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- National Semiconductor LMH6723/LMH6724/LMH6725 Single/Dual/Quad 370 MHz 1 mA Current Feedback Op Amp handbook 17 p
- National Semiconductor LMH6723/LMH6724/LMH6725 Single/Dual/Quad 370 MHz 1 mA Current Feedback Operational Amplifier handbook 17 p
- National Semiconductor LMH6723/LMH6724/LMH6725 Current Feedback Op Amp Datasheet 17 p
- NATIONAL SEMICONDUCTOR LMH6723/LMH6724/LMH6725 Single/Dual/Quad 370 MHz 1 mA Current Feedback Operational Amplifier Manual 17 p
Questions answered in these manuals
What is the maximum supply voltage range for these op amps?
The device operates with a nominal supply voltage between 4.5V and 12V.
What is the typical slew rate at a 4V step?
The typical slew rate is 600 V/us when stepping from 4V.
What is the maximum supply voltage range for the LMH6723/LMH6724/LMH6725?
The device supports a wide supply range of 4.5 to 12V.
What is the typical supply current per amplifier?
The amplifier consumes 1 mA from +5V supplies.
What is the maximum supply voltage for the LMH6723/LMH6724/LMH6725?
The devices can tolerate a supply voltage of up to ±6.75 V (VCC‑V‑).
From: National Semiconductor LMH6723/LMH6724/LMH6725 Current Feedback Op Amp Datasheet
What is the typical supply current per amplifier?
Each amplifier draws about 1 mA from the supply.
From: National Semiconductor LMH6723/LMH6724/LMH6725 Current Feedback Op Amp Datasheet
