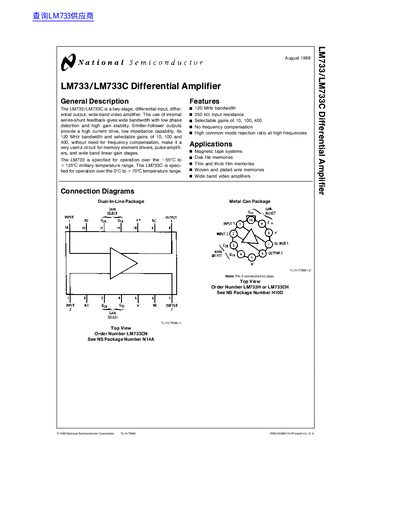

National Semiconductor LM733/LM733C Differential Amplifier Datasheet
The LM733/LM733C is a two-stage, differential input, differential output, wide-band video amplifier designed for memory element drivers, pulse amplifiers, and wide band linear gain stages. It utilizes internal series-shunt feedback to achieve wide bandwidth with low phase distortion and high gain stability. The device features emitter-follower outputs providing high current drive and low impedance capability.
Read onlineNational Semiconductor LM733 specifications
| Bandwidth | 120 MHz |
|---|---|
| Selectable Gains | 10, 100, 400 |
| Operating Temperature Range (LM733) | -55°C to +125°C |
Source: National Semiconductor LM733/LM733C Differential Amplifier Datasheet
All National Semiconductor LM733 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the selectable gain options for the LM733?
The device offers selectable gains of 10, 100, and 400 without the need for frequency compensation.
From: National Semiconductor LM733/LM733C Differential Amplifier Datasheet
Is frequency compensation required for this amplifier?
No, the LM733/LM733C operates without the need for frequency compensation.
From: National Semiconductor LM733/LM733C Differential Amplifier Datasheet
What are the selectable gain options for the LM733?
The device offers selectable gains of 10, 100, and 400 without needing frequency compensation.
From: National Semiconductor LM733/LM733C Differential Amplifier Datasheet
What is the bandwidth of the LM733?
The amplifier has a bandwidth of 120 MHz.
From: National Semiconductor LM733/LM733C Differential Amplifier Datasheet
