Start here

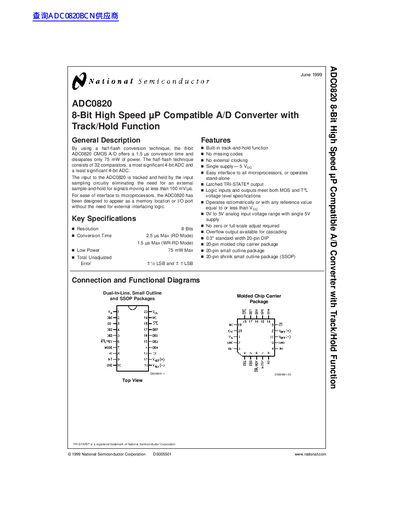

national semiconductor ADC0820 8-Bit High Speed P Compatible A/D Converter with Track/Hold Function handbook
The ADC0820 is a CMOS analog-to-digital converter featuring a half-flash conversion technique that provides an 8-bit resolution and a maximum conversion time of 1.5 µs in WR-RD mode. It includes a built-in track-and-hold circuit, eliminating the need for external sample-and-hold components for signals moving at less than 100 mV/µs.
The device is designed to interface easily with microprocessors by appearing as a memory location or I/O port without external logic. It operates on a single +5V supply and offers various package options including DIP, SSOP, and molded chip carriers.
National Semiconductor ADC0820 specifications
| Resolution | 8 Bits |
|---|---|
| Conversion Time (RD Mode) | 2.5 µs Max |
| Conversion Time (WR-RD Mode) | 1.5 µs Max |
| Power Dissipation | 75 mW Max |
| Total Unadjusted Error | +2 LSB and +1 LSB |
| Supply Voltage | +5V |
| Analog Input Range | 0V to 5V |
All National Semiconductor ADC0820 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the ADC0820 require an external sample-and-hold circuit?
No, it has a built-in track-and-hold function that eliminates the need for an external component.
What is the maximum conversion time in WR-RD mode?
The maximum conversion time is 1.5 µs.
What is the power consumption of the ADC08200 in power-down mode?
The device consumes 1 mW in power-down mode when the PD pin is raised.
From: national semiconductor ADC08200 8-Bit 20 MSPS to 200 MSPS 1.05 mW/MSPS A/D Converter handbook
What is the maximum sampling frequency of the ADC08200?
The converter operates at conversion rates up to 230 MSPS, with a minimum specified rate of 200 MSPS.
From: national semiconductor ADC08200 8-Bit 20 MSPS to 200 MSPS 1.05 mW/MSPS A/D Converter handbook
