Key facts
- Model
- COP87L88EG
- Category
- microcontrollers
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-04
Start here

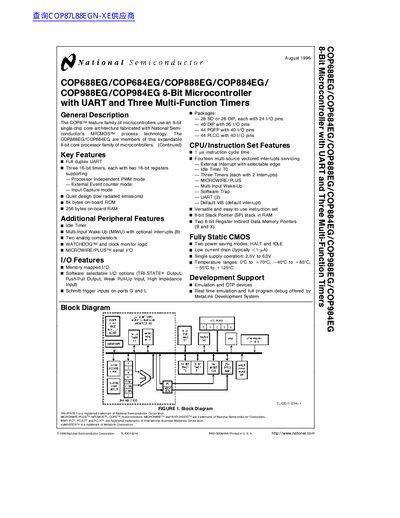

National Semiconductor COP87L88EG/COP688EG/COP684EG/COP888EG/COP884EG/COP988EG/COP984EG 8-Bit Microcontroller Datasheet
This document describes the COP8™ feature family of microcontrollers from National Semiconductor. These devices utilize an 8-bit single-chip core architecture fabricated with M2CMOST™ process technology. The family includes various models such as the COP688EG, COP888EG, and COP988EG.
Read onlineNational Semiconductor COP87L88EG specifications
| Operating Voltage (COP98XEG) | 2.5V to 4.0V |
|---|---|
| Supply Current (CKI = 10 MHz, Voc = 6V) | 12.5 mA |
| Instruction Cycle Time (4V < Voc < 6V) | 1 ps |
| On-board ROM | 8k bytes |
| On-board RAM | 256 bytes |
All National Semiconductor COP87L88EG documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What voltage range can this microcontroller operate on?
The device operates over a single supply voltage range of 2.5V to 6.0V.
What is the maximum instruction cycle time for this processor?
The device achieves high throughput with a maximum rate of one microsecond per instruction.
What is the instruction cycle time?
The instruction cycle time is 1 ps.
From: National Semiconductor COP87L88EG/COP87L84EG 8-Bit OTP Microcontroller Datasheet
What are the available packages?
The devices are available in 44 PLCC, 40 DIP, 28 DIP, and 28 SO packages.
From: National Semiconductor COP87L88EG/COP87L84EG 8-Bit OTP Microcontroller Datasheet
