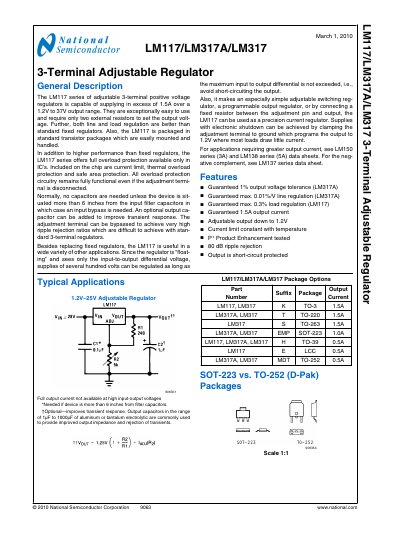

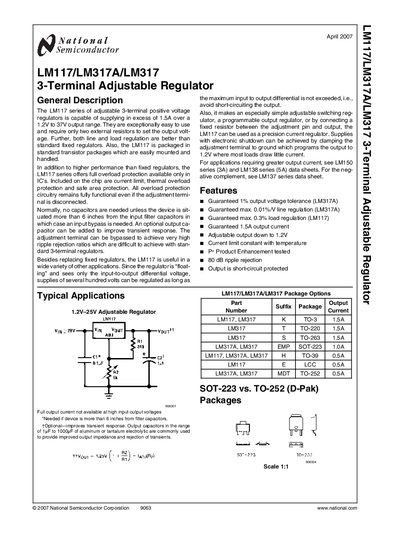

National Semiconductor LM117/LM317A/LM317 3-Terminal Adjustable Regulator Datasheet
The LM117 series of adjustable 3-terminal positive voltage regulators is capable of supplying in excess of 1.5A over a 1.2V to 37V output range. They are exceptionally easy to use and require only two external resistors to set the output voltage. Further, both line and load regulation are better than standard fixed regulators. Also, the LM117 is packaged in standard transistor packages which are easily mounted and handled.
In addition to higher performance than fixed regulators, the LM117 series offers full overload protection available only in ICs. Included on the chip are current limit, thermal overload protection and safe area protection. All overload protection circuitry remains fully functional even if the adjustment terminal is disconnected.
National Semiconductor LM117/LM317A/LM317 specifications
| Output Current | 1.5A |
|---|---|
| Output Voltage Range | 1.2V to 37V |
| Line Regulation (LM317A) | 0.01%/V |
| Load Regulation (LM117) | 0.3% |
| Ripple Rejection Ratio | 80 dB |
| Operating Temperature Range (LM117) | -55°C to +150°C |
| Operating Temperature Range (LM317A) | -40°C to +125°C |
Source: National Semiconductor LM117/LM317A/LM317 3-Terminal Adjustable Regulator Datasheet
