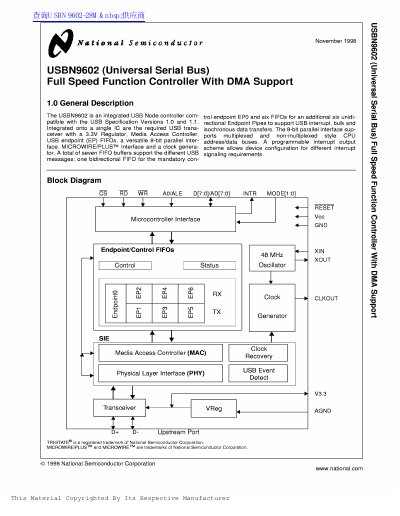

National Semiconductor USBN9602 Full Speed Function Controller Datasheet
The document describes the USBN9602, an integrated USB Node controller compatible with USB Specification Versions 1.0 and 1.1. The device integrates a USB transceiver with a 3.3V regulator, Media Access Controller, USB endpoint FIFOs, an 8-bit parallel interface, MICROWIRE/PLUS Interface, and a clock generator.
Read onlineNational Semiconductor USBN9602 specifications
| USB Specification Version | Versions 1.0 and 1.1 |
|---|---|
| Voltage Regulator Output | 3.3V |
| Oscillator Frequency | 48 MHz |
| Parallel Interface Width | 8-bit |
| Package Type | 28-pin SO package |
Source: National Semiconductor USBN9602 Full Speed Function Controller Datasheet
All National Semiconductor USBN9602 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the USBN9602 and what USB versions does it support?
The USBN9602 is an integrated USB Node controller compatible with USB Specification Versions 1.0 and 1.1.
From: National Semiconductor USBN9602 Full Speed Function Controller Datasheet
What is the frequency of the input clock derived from the crystal oscillator?
The input clock derived from a crystal or crystal oscillator has a frequency of 48 MHz.
From: National Semiconductor USBN9602 Full Speed Function Controller Datasheet
What USB specifications does the USBN9602 support?
The device is compatible with USB Specification Versions 1.0 and 1.1.
From: National Semiconductor USBN9602 Full Speed Function Controller Datasheet
Does the USBN9602 support DMA?
Yes, it provides DMA support for the parallel interface.
From: National Semiconductor USBN9602 Full Speed Function Controller Datasheet
