Start here

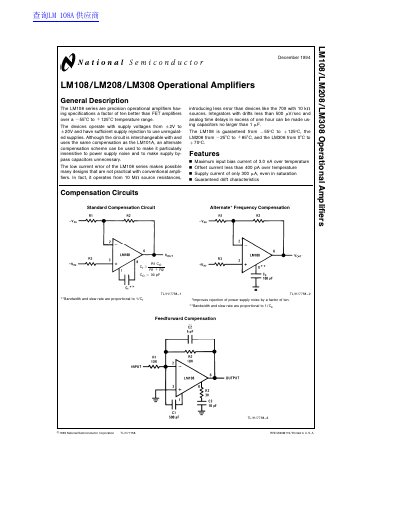

National Semiconductor LM108/LM208/LM308 Operational Amplifiers Datasheet
This document describes the LM108 series of precision operational amplifiers, which offer specifications a factor of ten better than FET amplifiers over a wide temperature range. The devices operate with supply voltages from 2V to 20V and feature sufficient supply rejection to allow the use of unregulated supplies. The series includes the LM108 (guaranteed from -55°C to +125°C), the LM208 (-25°C to +85°C), and the LM308 (0°C to +70°C).
Read onlineNational Semiconductor LM208 specifications
| Input Offset Voltage (Typ) | 0.7 mV |
|---|---|
| Input Bias Current (Typ) | 2.0 nA |
| Supply Current | 300 µA |
| Operating Temperature (LM108) | -55°C to +125°C |
| Operating Temperature (LM208) | -25°C to +85°C |
| Operating Temperature (LM308) | 0°C to +70°C |
Source: National Semiconductor LM108/LM208/LM308 Operational Amplifiers Datasheet
All National Semiconductor LM208 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum input bias current of the LM108 series?
The maximum input bias current is 3.0 nA over temperature.
From: National Semiconductor LM108/LM208/LM308 Operational Amplifiers Datasheet
Can the LM108 series use unregulated power supplies?
Yes, the devices have sufficient supply rejection to use unregulated supplies.
From: National Semiconductor LM108/LM208/LM308 Operational Amplifiers Datasheet
What is the operating temperature range for the LM208A?
The LM208A has its performance guaranteed over a -25°C to +85°C temperature range.
From: National Semiconductor LM108A/LM208A/LM308A Operational Amplifiers Datasheet
Can these amplifiers use unregulated power supplies?
Yes, they have sufficient supply rejection to allow for the use of unregulated supplies.
From: National Semiconductor LM108A/LM208A/LM308A Operational Amplifiers Datasheet
