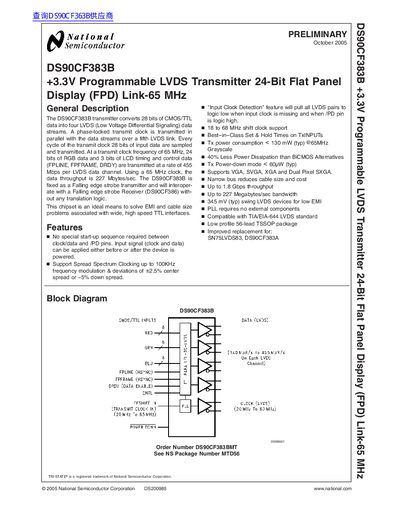

National semiconductor DS90CF383B +3.3V Programmable LVDS Transmitter 24-Bit Flat Panel Display handbook
Datasheet 11 pages · 628 KB · EN
The DS90CF383B is a +3.3V Programmable LVDS Transmitter designed to convert 28 bits of CMOS/TTL data into four LVDS data streams and one transmit clock stream. It supports up to 65 MHz shift clocks, enabling data throughput of up to 227 Mbytes/sec for applications such as VGA, SVGA, XGA, and SXGA displays.
Read onlineNational Semiconductor DS90CF383B specifications
| Supply Voltage (Vcc) | 3.0 V to 3.6 V |
|---|---|
| Operating Temperature Range | -10°C to +70°C |
| Maximum Package Power Dissipation | 1.63 W |
| LVDS Differential Output Voltage (Typical) | 345 mV |
| Data Throughput (Typical) | Up to 227 Mbytes/sec |
All National Semiconductor DS90CF383B documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum transmit clock frequency supported by this device?
The DS90CF383B supports a shift clock range from 18 to 68 MHz.
What is the typical supply voltage for operation?
The recommended operating supply voltage is 3.3V.
What is the supply voltage range for the DS90CF383B?
The recommended operating supply voltage (Vcc) ranges from 3.0 V to 3.6 V.
Does the DS90CF383B support spread spectrum clocking?
Yes, it supports Spread Spectrum Clocking up to 100KHz frequency modulation with deviations of +2.5% center spread or -5% down spread.
