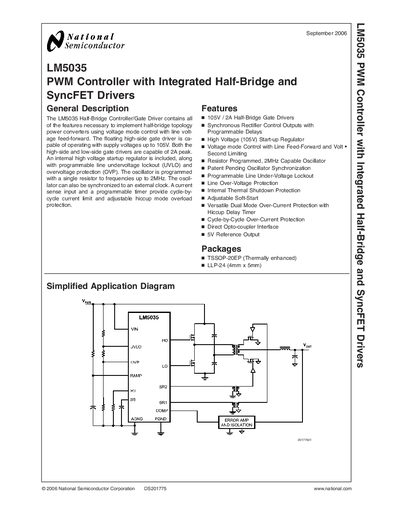

National Semiconductor LM5035 PWM Controller Datasheet
The LM5035 half‑bridge controller/gate driver integrates high‑side and low‑side drivers capable of 2 A peak current and a supply voltage rating up to 105 V. It includes a programmable resistor‑set oscillator that can run to 2 MHz and can be synchronized to an external clock. The device provides line‑feed‑forward voltage mode control, UVLO, OVP, soft‑start, thermal shutdown and dual‑mode over‑current protection.
The datasheet details pin functions, absolute maximum ratings, electrical characteristics, thermal specifications, typical performance curves, package dimensions and example application circuits. It also contains regulatory and life‑support usage notes from National Semiconductor.
National Semiconductor LM5035 specifications
| High‑side gate driver voltage rating | 105 V |
|---|---|
| Gate driver peak current | 2 A |
| Oscillator maximum frequency | 2 MHz |
| Startup regulator output voltage | 7.6 V |
| Reference output voltage | 5 V |
| Thermal shutdown temperature | 165 °C |
Source: National Semiconductor LM5035 PWM Controller Datasheet
All National Semiconductor LM5035 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum voltage the high‑side gate driver can handle?
The high‑side gate driver can operate with supply voltages up to 105 V.
From: National Semiconductor LM5035 PWM Controller Datasheet
What is the peak current rating for the gate drivers?
Both high‑side and low‑side gate drivers are rated for 2 A peak current.
From: National Semiconductor LM5035 PWM Controller Datasheet
