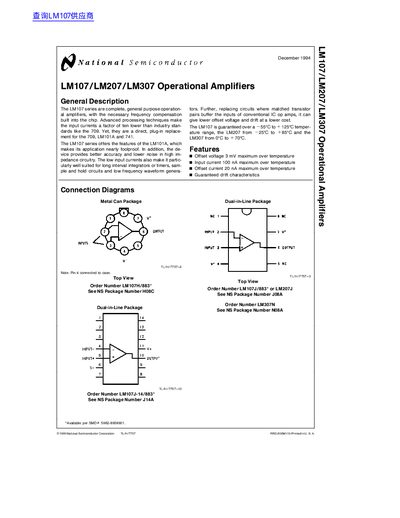

National Semiconductor LM107/LM207/LM307 Operational Amplifiers Datasheet
The LM107 series are complete, general purpose operational amplifiers with frequency compensation built into the chip. They are designed as a direct, plug-in replacement for the 709, LM101A, and 741, offering lower input currents and better accuracy in high impedance circuitry. The series includes the LM107 for industrial temperatures (-55°C to +125°C), the LM207 for commercial temperatures (-25°C to +85°C), and the LM307 for standard temperatures (0°C to +70°C).
Read onlineNational Semiconductor LM307 specifications
| Input Offset Voltage (Max) | 3 mV |
|---|---|
| Input Current (Max) | 100 nA |
| Offset Current (Max) | 20 nA |
| Operating Temperature Range (LM107) | -55°C to +125°C |
| Operating Temperature Range (LM207) | -25°C to +85°C |
| Operating Temperature Range (LM307) | 0°C to +70°C |
| Supply Voltage (Max) | +22V |
| Power Dissipation | 500 mW |
Source: National Semiconductor LM107/LM207/LM307 Operational Amplifiers Datasheet
All National Semiconductor LM307 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum input offset voltage for the LM107 series?
The maximum input offset voltage over temperature is 3 mV.
From: National Semiconductor LM107/LM207/LM307 Operational Amplifiers Datasheet
Can the LM107 replace the 741 op amp?
Yes, the LM107 series is a direct, plug-in replacement for the 709, LM101A and 741.
From: National Semiconductor LM107/LM207/LM307 Operational Amplifiers Datasheet
