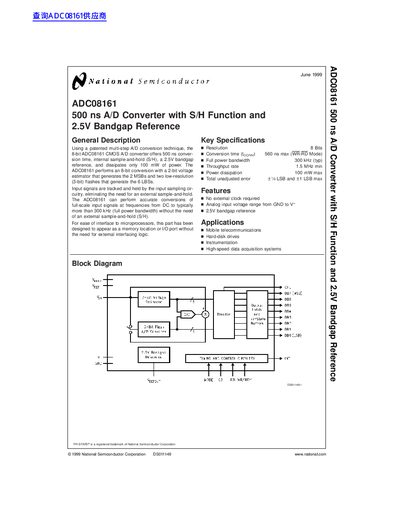

National Semiconductor ADC08161 500 ns A/D Converter Datasheet
The ADC08161 is an 8-bit CMOS analog-to-digital converter designed for high-speed data acquisition systems. It features a patented multi-step conversion technique offering a 500 ns conversion time and includes an internal sample-and-hold circuit, eliminating the need for external components. The device also incorporates a 2.5V bandgap reference and dissipates only 100 mW of power.
Read onlineNational Semiconductor ADC0816 specifications
| Resolution | 8 Bits |
|---|---|
| Conversion time | 560 ns max |
| Full power bandwidth | 300 kHz (typ) |
| Power dissipation | 100 mW max |
| Total unadjusted error | +1% LSB and +1 LSB max |
| Supply Voltage | 4.5V to 5.5V |
| Operating Temperature Range | -40°C to +85°C |
| Reference Input Resistance | 700 500 Q {min) |
Source: National Semiconductor ADC08161 500 ns A/D Converter Datasheet
All National Semiconductor ADC0816 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the ADC08161 require an external clock?
No, the device does not require an external clock.
From: National Semiconductor ADC08161 500 ns A/D Converter Datasheet
What is the nominal operating supply voltage?
The nominal operating supply voltage is +5V.
From: National Semiconductor ADC08161 500 ns A/D Converter Datasheet
Does the device require external zero or full-scale adjustments?
No, the device eliminates the need for external zero and full-scale adjustments.
How many channels does the multiplexer support?
The device features a 16-channel multiplexer.
