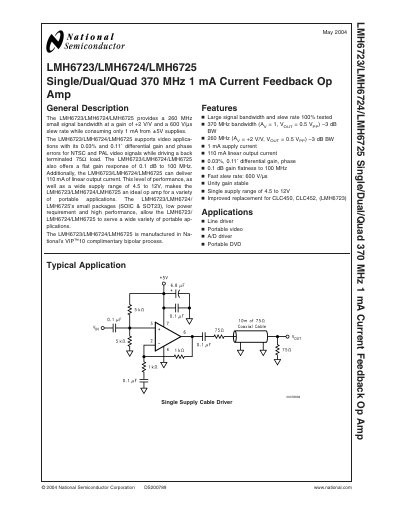

The LMH6723/LMH6724/LMH6725 family provides high‑speed current‑feedback operation with a 260 MHz small‑signal bandwidth, 600 V/µs slew rate, and 110 mA linear output current. Available in single, dual, and quad configurations, the devices operate from a 4.5 V to 12 V supply while drawing only 1 mA.
These op‑amps are suited for portable video, line‑driver, and A/D driver applications. The datasheet includes absolute maximum ratings, detailed electrical characteristics, typical performance graphs, layout recommendations, and packaging information for SOT‑23, SOIC‑8, and SOIC‑14 packages.
| Small‑signal bandwidth | 260 MHz |
|---|---|
| Large‑signal bandwidth | 370 MHz |
| Slew rate | 600 V/µs |
| Supply current | 1 mA |
| Linear output current | 110 mA |
| Supply voltage range | 4.5 V to 12 V |
| Maximum supply voltage | ±6.75 V |
| ESD protection (Human Body Model) | 2000 V |
The devices can tolerate a supply voltage of up to ±6.75 V (VCC‑V‑).
Each amplifier draws about 1 mA from the supply.
